E27 lamp holder gauge through regulation; E27 lamp holder gauge only regulation; E27 lamp holder solder height regulation; E27 lamp holder contact energy regulation
Gauge through 27 gauge lamp

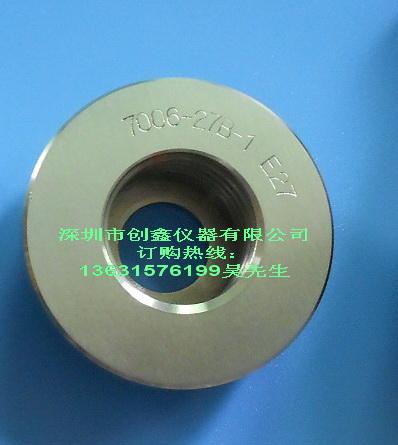

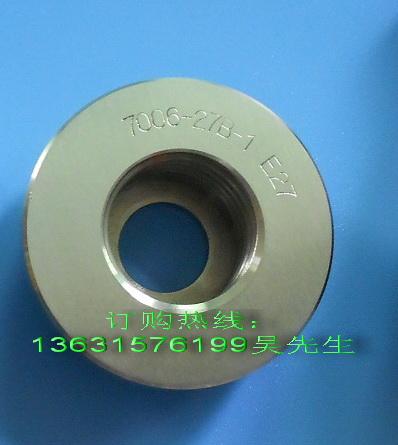

E27 lamp holder gauge-gauge (7006-27B-1)

Objective: to detect the minimum size of the maximum size of finished lamp on the lamp and the lamp length of thread
Instructions:
a) The cap is screwed into the gauge; smooth screwing; represents the maximum size of the cap in line with the requirements of the cap thread;
b) When the cap is completely screwed gauges, flat cap contacts should coplanar or bulge in the X-plane and gauge X surface, then cap the length of the line with the minimum size requirements.

E27 lamp holder gauge only regulation

E27 lamp holder gauge only regulation (7006-28A-1)

Objective: to detect the minimum cap threaded large diameter d of E27 finished lamp on.
Usage: When the gauge to set weight on the base thread, finished lamp lights on the center contact should not be protruding gauge X surface.

E27 lamp holder solder height regulations

E27 lamp holder solder height regulations (7006-27C-1) in English instructions

Objective: to detect the maximum and minimum size of S1 E27 lamp holder (ie solder height).

Usage: When inserting the gauge, gauge plunger end face W should be coplanar or bulge in the X-plane cap on the amount of finished light gauge X surface, but not higher than the Y plane.

E27 lamp holder contact energy regulation

E27 lamp holder contact performance regulations (7006-50-1) Description

Contact performance for detecting light with the IEC standard lamp holder: Purpose

Usage: to be pushed into the test light gauge, can come into contact with the surface until W or exceeds V surface V surface, it indicates good contact performance otherwise does not meet the requirements.
