add to cartSuper thin mill profile:

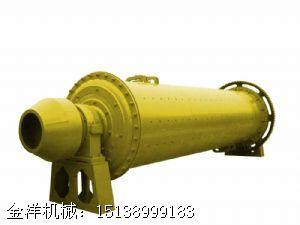

Ultrafine mill Ultrafine mill is the scope after the item is broken, then crushing the key equipment. Ball mill is widely used in cement, silicate products, new building materials, refractory, fertilizer, mineral processing and glass ceramic of ferrous and nonferrous metals and other production industries, on a variety of ores and other materials for grinding dry or wet grinding.
Super-fine ball mill operating principle:
Ultrafine mill Working principle: for horizontal cylindrical turning gear, drive by outer gear and two hoppers, grid ball mill. Hollow shaft of material feeding device under the screw evenly into the mill's first warehouse, the Chamber has ladder liner or corrugated liner inside the ball with different specifications, cylinder rotating centrifugal force of steel balls to fall after a certain height, pounding and grinding impact on materials. Material in the first position after reaching the coarse grinding, with single-layer diaphragm into the second position, the warehouse decorated with flat liner, steel ball inside the material further grinding. Powder discharged through the discharge grate plate, finish grinding.
Super-fine ball mill structure features:
Ultrafine mill Change the original mill structure, body, chassis integration, installation can be a one-time lift in the base plane. Super-fine ball mill by the feeding part, discharging part, turning, driving part (reducer; small driving gear motor electric control) and other major parts. Hollow shaft with steel lining removable, rotating gear-hobbing machining of castings, cylinder studded with wear-resistant lining, good wear resistance. The machine is smooth running, reliable. Main bearings double row spherical roller bearings, can reduce energy consumption 30%. From lattice forced discharge into easy flow control discharge can improve grinding granularity, throughput can be increased reckons.
Energy-saving grinding machine technical parameters:
Specifications straight ultrafine mill | |||||||||
Model | Cylinder | Effective volume M3 | Maximum amount of balls t | Handling capacity t/h | Motor Motor | Weight kg | |||
Diameter mm | Length mm | Speed r/min | Model | Power kW | |||||
GMG1224 | 1200 | 2400 | 32.6 | 2.2 | 3.96 | 0.26~6.15 | Y280S-6 | 45 | 9950 |
GMG1228 | 1200 | 2800 | 33 | 2.5 | 4.24 | 0.3~6.5 | Y280M-6 | 55 | 10933 |
GMG1230 | 1200 | 3000 | 32.6 | Y280M-6 | 55 | ||||
GMG1520 | 1500 | 2000 | 30.9 | 3.26 | 5.2 | 2~7.56 | YR280S-8 | 55 | 14828 |
GMG1525 | 1500 | 2500 | 30.9 | 4.1 | 6.5 | 2.3~8 | YR280M-8 | 75 | 16340 |
GMG1530 | 1500 | 3000 | 30.9 | 5 | 8.6 | 2.8~9 | JR117-8 | 80 | 19720 |
GMG1536 | 1500 | 3600 | 29.5 | 5.8 | 9.2 | 3.2~10.5 | JR116-6 | 95 | |
GMG1830 | 1800 | 3000 | 25.7 | JR127-8 | 130 | 26339 | |||
GMG1836 | 1800 | 3600 | 25.7 | 6.68 | 11.5 | JR127-8 | 130 | 28781 | |
GMG1840 | 1800 | 4070 | 25.7 | JR128-8 | 155 | 30297 | |||
GMG2130 | 2100 | 2990 | 23.8 | 9 | 17 | 4~30 | JR136-8 | 180 | 40685 |
GMG2136 | 2100 | 3590 | 23.8 | 10.8 | 20 | 4.2~35 | JR138-8 | 210 | 42160 |
GMG2140 | 2100 | 3990 | 21.3 | 12.4 | 21.3 | 4.2~36 | JR138-8 | 245 | 47611 |
GMG2145 | 2100 | 4500 | 24.6 | 13.5 | 26 | 8~35 | JR138-8 | 245 | 56710 |
GMG2430 | 2400 | 3000 | 22 | 19 | JR137-6 | 280 | 61950 | ||
GMG2436 | 2400 | 3600 | 22 | 13.68 | 23.5 | JR137-6 | 280 | 66008 | |
GMG2727 | 2700 | 2700 | 22 | 13.8 | 27 | JR137-6 | 280 | 78402.7 | |
GMG2730 | 2700 | 3000 | 20.6 | 15.68 | 30 | YR5003-8 | 355 | 83718.5 | |
GMG2736 | 2700 | 3600 | 20.6 | 18.8 | 36 | 25~38 | JR1512-8 | 380 | 82736.3 |
GMG2740 | 2700 | 4000 | 20.6 | 18.8 | 40 | JR1512-8 | 380 | 87260.7 | |
GMG2745 | 2700 | 4500 | 20.6 | 23.52 | 40 | YR5005-8 | 450 | 91143 | |
GMG2840 | 2800 | 4000 | 21.8 | 39 | TDMK500-32 | 500 | |||
GMG2844 | 2800 | 4400 | 21.8 | 24.8 | 42.7 | TDMK500-32 | 500 | ||
GMG3245 | 3200 | 4500 | 61 | TDMK800-32 | 800 | 136000 | |||
Note: straight Super-fine ball mill features: (1) energy-saving: uses rolling bearings replace bearings; Friction is greatly reduced; Start is easy; Than the old mill power consumption savings rising; (2) capacity: as a result of the standard mill discharge disc and the grid plate, more than 20% over saving cone processing; (3) construction: as a result of the whole frame, civil construction and equipment installation; (4) super-fine ball mill technical parameters change, then without notice. |
