Grader profile:

Zhengzhou Jinyang Machinery High Performance Grader Widely used in the concentrator and mill closed cycle process dubbed minute drive shunt mineral sands, or gravity concentrator to grade ore and fine mud, or metal beneficiation processes for pulp particle size classification, and washing off the job mud, dehydration and other operations. Jinyang grader has a simple structure, reliable, easy to operate.

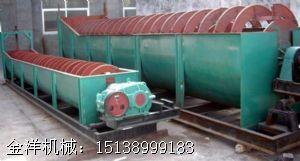

Spiral classifier Divided into: single spiral classifier, double spiral classifier spiral classifier based on the overflow end of the helical blade immersion program different shades overflow surface can be made of the following two:

1, high weir grader: overflow top end of the spiral blade is higher than the overflow surface and overflow terminal helix center below the overflow surface is mainly used for overflow granularity of ore grading 0.83-0.15mm;.

2, sinking grader: overflow end of the helical vane fully submerged below the surface overflow overflow is mainly applied to a particle size of 0.15-0.07mm ore grading.

Classifier performance advantages:

Split grader from Zhengzhou Jinyang Machinery Co., Ltd. developed a new type of ultra-fine classifier, self shunt inertial classification technology and centrifugal classification of the perfect combination of technology, the core technology has reached world advanced level, technical performance than turbo-grader there qualitative leap.

1. energy consumption: the same amount of processing power than the other horizontal, vertical classifier 50% lower.

2. High efficiency: the same amount of processing Jinyang Classifier efficiency increased by 50% compared to other horizontal and vertical classifier.

3. High precision: classification fineness, the complete elimination of the product is too large particles and sieve residue.

4. Low speed: the same particle size grading, grading rotation ratio other horizontal, vertical classifier 50% reduction in the production of Mohs hardness of the powder (5 classifier wheel wear; Mohs hardness ≥7 production of powder. When the body, Jinyang Classifier wheel life than other horizontal, vertical increase 5-8 times.

5. high yield: mainframe output of up to 50t / h.

6. The structure of the whole: according to different special requirements, configure a dedicated hierarchy.

7. The vacuum production, no dust pollution, environmental quality. High degree of automation, stable and easy to operate.

8. Jinyang grader with a ball mill, Raymond mill, impact mill, jet mill and other grinding equipment components closed or open systems.

Grading machine technical parameters:

model Helix diameter (mm) Screw speed (r / min) Sink length (mm ≤) Motor Power kw ≤ Dimensions mm≤ Weight t
Drive with Lifting long wide high ≤
FG-3 300 12-30 3000 1.1 - 3850 490 1140 0.7
FG-5 500 8-12.5 4500 1.1 - 5430 680 1480 1.6
FG-7 750 6-10 5500 3 - 6270 980 1820 2.7
FG-10 1000 5-8 6500 5.5 - 7590 1240 2380 4.0
FC-10 8400 7.5 9600 1240 2680 6.0
FG-12 1200 4-6 6500 7.5 2.2 8180 1570 3110 8.5
FC-12 8400 7.5 2.2 10370 1540 3920 11
2FG-12 6500 15 4.4 8230 2790 3110 15.8
2Fc-12 8400 15 4.4 10370 2790 3920 17.6
FG-15 1500 4-6 8300 7.5 2.2 10410 1880 4080 12.5
FC-15 10500 7.5 2.2 12670 1820 4890 16.8
2FG-15 8300 15 4.4 10410 3390 4080 22.1
2FC-15 10500 15 4.4 12670 3370 4890 30.7
FG-20 2000 3.6-5.5 8400 11-15 3 10790 2530 4490 20.5
FC-20 12900 11-15 3 15610 2530 5340 28.5
2FG-20 8400 22-30 6 11000 4600 4490 35.5
2FC-20 12900 22-30 6 15760 4600 5640 48.7
FG-24 2400 3.67 9130 15 3 11650 2910 4970 25.7
FC-24 14130 18.5 4 16580 2930 7190 41.0
2FG-24 9130 30 6 12710 5430 5690 45.8
2FC-24 14130 37 8 17710 5430 8000 67.9
2FG-30 3000 3.2 12500 40 8 16020 6640 6350 73
2FC-30 14300 17091 8680 84.8
