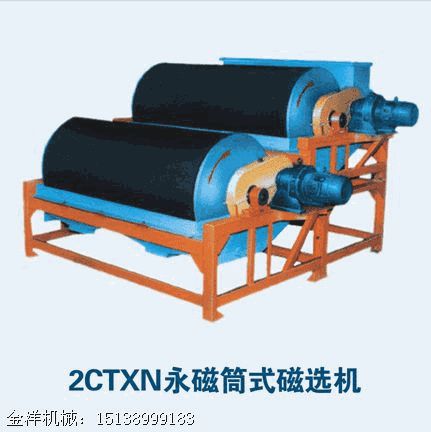

Super magnetic separator

Super magnetic separator

bargain

add to cart

Super magnetic separator Introduction:

Jinyang super magnetic separator is a separation of weakly magnetic minerals intensity magnetic separation equipment. Super magnetic separator Wet magnetic separation of magnetite suitable granularity below 3mm, pyrrhotite, roasted ore, ilmenite and other materials, also used in addition to iron work coal, non-metallic minerals, building materials and other materials.

Super magnetic separator structure:

Jinyang company Seiko super magnetic separator mainly excitation power control box, the excitation coil, a yoke, pole, induction roller, vibrating feeder, then mine shafts and other components.
Magnetic separator magnetic system, using high-quality ferrite material or composite made with rare earth magnets, drum table the average magnetic flux density of 100 ~ 600mT. According to user needs, Zhengzhou Jinyang Machinery Co., providing downstream, semi-countercurrent , a variety of different table strong magnetic countercurrent type. The separator has a simple structure, large capacity, easy to operate, easy to maintain.

Super magnetic separator has the following advantages:

1, magnetic induction intensity magnetic separator roll up 12000GS, can reach a maximum 14000GS, having other equipment can not reach the magnetic attraction, to meet the low-grade ore efficient weakly magnetic separation requirements.

2, the machine points good selection effect: Under normal circumstances sorting poor grade manganese can be increased by 10 degrees; Jinyang super magnetic separator sorting poor limonite, hematite can be increased by the poor quality of 8 degrees.

3, Jinyang company to provide users with a full set of production line magnetic separation equipment, and equipment for the customer site commissioning, user training operation and maintenance personnel to ensure the normal operation of the production line.

4, Super magnetic separator Many types in a wide range of high intensity magnetic separation machine, commonly used Jones style, imitation Jones type, ring type, multi-type and other strong gradient magnetic separator. The user can choose according to need.

Super magnetic separator machine technical parameters:

model
parameter
project		 roller
diameter
mm		 adapt
bandwidth
mm		 Drum table
Magnetic induction
Strength ≈GS		 Barrel
Rotating speed
r / min		 Powdery materials
In addition to iron capacity
≈t / h		 Bulk materials
In addition to iron capacity
≈t / h		 weight
Kg		 Dimensions
A B C D L
CTZ-32/40 320 400 3000 20-45 0.8 10 150 728 480 910 320 500
CTZ-32/50 320 500 3000 1 15 170 850 580 1000 320 600
CTZ-32/65 320 650 3000 2 20 190 1000 730 1215 320 750
CTZ-40/40 400 400 3000 1.5 15 170 728 480 910 400 500
CTZ-40/50 400 500 3000 2 20 240 850 580 1000 400 600
CTZ-40/65 400 650 3000 2.8 30 365 1000 730 1215 400 750
CTZ-40/80 400 800 3000 8 55 470 1300 880 1455 400 900
CTZ-50/50 500 500 3000 3.5 30 360 850 580 1000 500 600
CTZ-50/65 500 650 3000 4.5 40 450 1000 730 1215 500 750
CTZ-50/80 500 800 3000 10 65 600 1300 880 1455 500 900
CTZ-63/65 630 650 3000 7 45 710 1000 730 1215 630 750
CTZ-63/80 630 800 3000 10 80 800 1300 880 1455 630 900
CTZ-63/100 630 1000 3500 12 120 980 1500 1080 1785 630 1100
CTZ-80/80 800 800 4000 12 100 1010 1300 880 1455 800 900
CTZ-80/100 800 1000 4000 15 140 1300 1500 1080 1785 800 1100
CTZ-100/120 100 1200 4000 20 180 1580 1750 1180 2015 1000 1200
