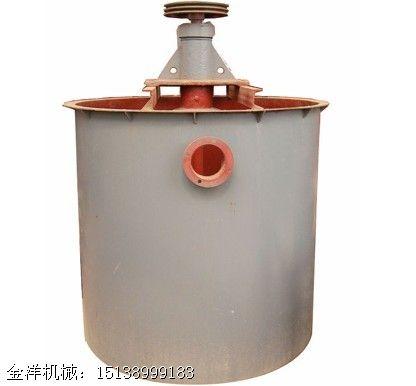

Mine mixing bucket Uses:

Jinyang mine Mixing bucket Pulp for flotation before stirring to make pulp and chemical mix, creating the conditions for processing operations.

Mine mixing tube use and maintenance:

1. Power preceded by checking all parts of the mixing bucket bolts are tightened, whether filled with lubricating oil.

2. Stop adding water to clear debris barrel precipitation.

3. The mixing drum can also be used as chemical raw materials mixing ingredients.

Mine Mixing tube Installation and maintenance

Jinyang mine mixing drum machine maintenance is an extremely important regular work, it should work closely with most of the operations and maintenance, etc., should be full-time personnel on duty checks.

A machine maintenance:

1; bearing shoulder the entire load of the machine; so good lubrication of the bearing life of a great relationship; it directly affects the life of the machine and the operation rate; thus requiring injection of oil must be cleaned; seal must be good; stirring barrel The main oiling Office (1) Turn bearing (2) roller bearing (3) all gears (4) activities bearings, sliding plane.

2, the newly installed tire prone to loosening must always be checked.

3, Jinyang mine Mixing bucket Pay attention to whether the various parts of the machine when the power is working properly.

4, pay attention to check the degree of wear parts wear, and pay attention to replacement of worn parts.

5, put the active device chassis plane should avoid activities out dust and other matter bearing on the chassis can not move the machine does not meet the crushed material, so as to cause a serious accident.

6, mixing drum bearing temperature rise, should immediately stop check the reason to eliminate them.

7; rotating gears operate if the impact of sound should immediately stop inspection; and to eliminate

Second installation test:

1, Jinyang mine mixing drum equipment should be installed on a level concrete foundation with anchor bolts.

2, the installation should pay attention to the barrel main body stirred vertical and horizontal.

3. After installation check all parts for loose bolts and host the doors are tight and, if requested to tighten.

4, according to the configuration of power equipment and power line control switch.

5, check is completed, the empty load test, test the normal production.

Mine mixing bucket main technical parameters:

model	Simplified diameter mm	Simplified height mm	Effective capacity mm	Impeller diameter mm	Impeller speed Rev / min	Dimensions mm	Equipped with a motor
							model	power	Rotating speed
XB-500	500	500	0.098	200	600	600*566*954	Y90L-6	1.1	940
XB-750	750	750	0.33	255	530	1085*858*1202	Y100L-6	1.5	940
XB-750	750	1000	0.44	255	530	1085*858*1492	Y100L-6	1.5	940
XB-1000	1000	1000	0.58	255	530	1172*1138*1491	Y100L-6	1.5	940
XB-1200	1200	1250	1.4	400	340	1354*1310*1742	Y132S-6	3	960
XB-1500	1500	1500	8.2	400	320	1656*1572*2171	Y132S-6	3	960
XB-2000	2000	2000	5.6	550	290	2380*2162*2850	Y132M2-6	5.5	960
XB-2500	2500	2500	11.2	650	280	3036*2716*3543	Y180M-4	18.5	735
XB-3000	3000	3000	19.1	700	210	3604*3216*4250	Y180M-4	18.5	735
XB-3550	3550	3550	30	850	230	3940*3766*5386	Y225M-8	22	730
TSO-750	750	1000	0.44	250	674	1085*958*1492	Y100L2-4	3	1420
TSO-1200	1200	1200	1.4	400	400		Y132S-4	5.5	1440
TSO-1500	1500	1500	2.2	410	400-440	2060*1620*2330	Y160M-4	11	1460
