Slag mill introduction:

Slag mill Slag treatment method for specific description: the machine to slag, stainless steel slag, high-speed steel slag as raw material, using the latest closed-loop production process, respectively, by crushing, milling, 6-S shaker, wet magnetic separation process and other processes, Jinyang Machinery quality slag mill products have four kinds of efficient and high quality and high value-added products, namely steel containing greater than 90% can be used in steel-making, high-grade purity steel powder can and smelting furnace, a waste as cement and concrete admixtures, tails for highway pavement concrete pavement aggregate, slag truly zero emissions slag completely solve the pollution of the environment.

Slag mill works:

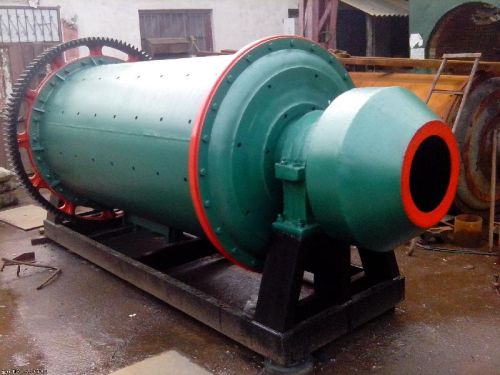

Zhengzhou Jinyang Machinery First slag milling machine Is a simplified, out of the hollow shaft and the grinding head and other parts of the level of composition, English as a cylinder, cylinder with grinding, cylinder is of steel manufacturing, there is a steel liner and Simplified fixed grinding body is generally high-manganese steel liner board material, so that the ratio of grinding steel balls, according to different diameters and a certain percentage of load cylinder, grinding steel segment can also be used, to be selected according to the particle size of the abrasive material, the material from the mill feed end of the hollow shaft receiving sleeve body When slag mill rotating cylinder when grinding due to inertia and centrifugal force, friction force, it is near the posts cylinder liner cylinder away, when was taken to a certain height, because of its own gravity has been thrown down, falling like a projectile, like grinding the cylinder body material to crushing grinding.

Slag mill Material from the feed device into the compound evenly into the air shaft spiral mill cylinder, high Meng steel liner plate inside the warehouse, built with different specifications steel ball, rotating cylinder produces centrifugal force to the ball after a certain height fall, the material produced pounding and abrasive. powder discharged through the discharge grate plate to complete the grinding operation, then separately.

Slag mill installation:

Jinyang Slag mill Should be installed on a solid concrete foundation, foundation design and construction see assembly diagrams and base map, in order to ensure that the various components of a ball mill in the course of the positional accuracy of a big change does not occur, the foundation should be monolithic structure.

After the compressive strength of the concrete foundation can reach more than 75 percent above installation slag mill before installing response based quality inspection, requiring concrete defect did not affect the strength of the hole to the left of the number and location to meet the requirements, to the left hole no debris and stagnant water, no oil. When using 'line method' for installation work, based on the surface should be buried 'center standard plate' Draw all the center line and the center of 'Targets' on the basis of pre-installation make eye-catching red dot on the mark, as a neutral reference installation.

1. The main part of the specific requirements see the spindle bearing member assembly drawing.
2. Referring to the rotary barrel portion partially assembled in FIG.
3. See the transmission parts transmission parts assembly drawing.
4. Referring to the relative position of the whole assembly drawing.

Slag mill technical parameters:

Specifications Model Type	Speed ​​of bucket (R / min)	Weight of ball (T)	Feeding size (Mm)	The particle size (Mm)	Yield (T / h)	Motor Power (Kw)	weight (T)
Φ900*1800	38	1-1.4	≤20	0.075-0.89	0.65-2	15	4.6
Φ900*2100	38	1.5	≤15	0.075-0.83	0.7-3.5	18.5	4.9
Φ900*3000	38	2.7	≤20	0.075-0.89	1.1-3.5	22	5.5
Φ1200*2400	32	3.3-3.5	≤25	0.075-0.6	1.5-4.8	30	10.5
Φ1200*2800	32	3.8	≤25	0.075-0.6	1.6-5.8	37	13
Φ1200*4500	32	7	≤25	0.074-0.4	2-6	55	12.8
Φ1500*3000	29	6.75-6.4	≤25	0.074-0.4	2-5	75	17
Φ1500*3500	29	8	≤25	0.074-0.4	3-7	75	17.5
Φ1500*4500	29	14	≤25	0.074-0.4	3.5-12	110	21
Φ1500*5700	29	15	≤25	0.074-0.4	3.5-8	115	24.7
Φ1830*3000	24	10.6-11.35	≤25	0.074-0.4	4-10	130	28
Φ1800*3600	24	18	≤25	0.074-0.4	5-17	130	33.5
Φ1830*7000	24	25	≤25	0.074-0.4	7.5-22	210	36
Φ2100*3600	22	19	≤25	0.074-0.4	15-22	370	46.8
Φ2200*5500	21	30	≤25	0.074-0.4	10-30	210	48.5
Φ2200*6500	21	31	≤25	0.074-0.4	14-32	380	52.8
Φ2200*7500	21	33	≤25	0.074-0.4	16-36	380	56
Φ2400*3000	20.6	22	≤25	0.074-0.4	22-44	245	59
Φ2400*4500	21	30	≤25	0.074-0.4	8.5-60	380	65
Φ2700*3600	20.6	39	≤25	0.074-0.4	12-70	400	91.3
Φ2700*4000	20.7	40	≤25	0.074-0.4	12-80	400	94
Φ2700*4500	20.7	48	≤25	0.074-0.4	12-90	430	102
Φ3200*4500	18	65	≤25	0.075-0.4	60-125	800	137
Φ3500*4500	15.6-19.5		≤25	0.075-0.4	75-130	1000	156
Φ3600*4500	14.8-19.2		≤25	0.075-0.4	80-150	1250	165
Φ4000*6000	13.9-16.8		≤25	0.075-0.4	120-200	1600	248
