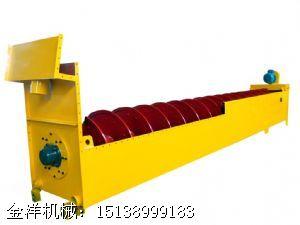

Screw Conveyor Product Overview:

LS type Screw Conveyor In accordance with JB / T679-95 (screw conveyor) design and manufacturing standards, is GX Screw conveyor The replacement product. Head and tail bearing housing to move outside, hanging bearing sliding bearing, no dust seals, bearing the general use of powder metallurgy, transport cement using a felt pad, hanging shaft and screw shaft is connected to the slider, disassemble spiral when, without moving the drive means disassembly without moving spiral hanging bearing, without removing the cover plate can be lubricated hanging bearing, high machine reliability, long life, adaptability, easy installation and maintenance.

spiral Conveyor main feature:

1. The carrying capacity, safety and reliability.
2. adaptability, easy installation and maintenance, long life.
3. The whole small size, high speed, to ensure rapid and uniform delivery.
The cleaning device has a discharge end, low noise machine, adaptable, flexible layout expected out of position.
5. tightness, and the shell is made of seamless steel pipe production, the end flange integrally connected to each other, and good rigidity.

Screw conveyor works:

Jinyang Screw Conveyor Is the use of rotating spiral within the material being conveyed along a fixed cabinet goes to work and carry out delivery, head and tail bearing housing to move outside, hanging with a dust-bearing sliding bearing seals, bearing the general use of powder metallurgy, transporting cement pad using blankets hanging shaft and screw shaft is connected to the slider.

Screw Conveyor Machine layout:

Screw Conveyor Usually by a screw machine body, and out means, driving means three major components. Screw machine body from head section, middle section and tail section of the three components. Under normal circumstances, the factory assembly length of the intermediate section in order of priority according to the length of the longest the middle section near the first section, the middle section of the same length is put together, if there are special requirements, in the order given in the order in the first section that has the support to push the bearing axial force, in the middle section and tail section built Useful bearing screw shaft, in addition, in the tail section is also provided with an axially movable radial bearing to the screw shaft length error and compensation to adapt to temperature changes. form helical spiral surface entities (S Method) and the belt screw (D system method) two. using between screw shaft flange type connection, shaft connection to ensure interchangeability, ease of maintenance. Cover with a lid for the tile type and buckle clamp on the housing, if needs to be improved sealing performance, the user can cover and chassis in between plus waterproof canvas. Jin, a feeding device has feed inlet, square spout, hand-push spout, discharge port rack four Species by users in the use of welding in the opening scene on the body. arranged into, a gate location should be taken to ensure that the distance between the ends of the discharge port, while avoiding the discharge port and hanging bearing refueling Cup, chassis coupling flange, base, etc. collide.
Driving means having ZQ series reducer + Y series motor, YTC Gear Motor two kinds.
Press the screw conveyor drive is divided into two types:
Method C1 - When screw conveyor length is less than 35m, single-ended drive.
Method C2 - screw conveyor is greater than 35m, double-ended drive.
Press screw machine middle hanging bearing types are divided into:
M1- hanging bearing rolling; with 80,000 seals bearing; the shaft cover another dust seal structure; commonly used in easy refueling; without oil or oil-contaminated areas of materials are; good sealing effect; long hanging bearing life; transportation of materials Temperature ≤80 ℃ (do not specify when ordering).
M2- hanging sliding bearings; dustproof seal; transportation of materials commonly used in relatively high temperature () 80 ℃), or transport liquid materials.

Screw Conveyor Technical parameters:

LS type	100	160	200	250	315	400	500	630	800	1000	1250
GX type			200	250	300	400	500
Helix diameter (mm)	100	160	200	250	315	400	500	630	800	1000	1250
Pitch (mm)	100	160	200	250	315	355	400	450	500	560	630
Speed ​​(r / min)	140	120	90	90	75	75	60	60	45	35	30
Throughput QΦ = 0.33 (m3 / h)	2.2	7.6	11	22	36.4	66.1	93.1	160	223	304	458
Power Pd 1 = 10m (KW)	1.1	1.5	2.2	2.4	3.2	5.1	4.1	8.6	12	16	24.4
Power Pd 1 = 30m (KW)	1.6	2.8	3.2	5.3	8.4	11	15.3	25.9	36	48	73.3
Speed ​​(r / min)	120	90	75	75	60	60	45	45	35	30	20
Throughput QΦ = 0.33 (m3 / h)	1.9	5.7	18	18	29.1	52.9	69.8	125	174	261	305
Power Pd 1 = 10m (KW)	1.0	1.3	2.1	2.1	2.9	4.1	4.7	6.8	9.4	14.1	16.5
Power Pd 1 = 30m (KW)	1.5	2.3	4.5	4.5	7	8.9	11.6	20.4	28.3	42.2	49.5
Speed ​​(r / min)	90	75	60	60	45	45	35	35	30	20	16
Throughput QΦ = 0.33 (m3 / h)	1.4	4.8	15	15	21.8	39.6	54.3	97	149	174	244
Power Pd 1 = 10m (KW)	0.9	1.2	1.9	1.9	2.5	3.4	4.3	5.4	8.1	9.5	13.3
Power Pd 1 = 30m (KW)	1.2	2.2	3.8	3.8	5.4	6.8	9.2	16	24.4	28.6	39.9
Speed ​​(r / min)	75	60	45	45	35	35	30	30	20	16	13
Throughput QΦ = 0.33 (m3 / h)	1.2	3.8	11	11	17	31.7	46.5	73.0	99.3	139	199
Power Pd 1 = 10m (KW)	0.75	1.1	1.6	1.6	2.1	3.1	3.7	4.6	5.7	7.7	11
Power Pd 1 = 30m (KW)	1.1	1.8	3.4	3.4	4.4	5.6	8	14	16.7	23.2	33

Note:
When Method 1. C1 screw machine length is less than 35m single-ended drive, when prepared by C2 screw machine length greater than 35m double-ended drive.
2. M1- rolling bearing hanging, do not indicate when ordering, M2- sliding bearings, Ming Wa note when ordering material (copper tile bearing materials; wear-resistant alloys; iron; copper-graphite less oil lubrication watts).
GX series screw conveyor Dimensions:

model	W	A	B	C	D	N	R	Y	L	K	M	S	P	O	H	V	J	T	G
GX150	2000	170	236	216	10	8	190	190	112	140	100	135	17	270	110	160	16	195	100015002000
GX200	2500	220	306	272	10	8	220	190	112	180	200	165	25	308	140	200	16	250	1500 2000 2500
GX250	2500	270	356	330	10	8	270	190	140	220		195	28	356	200	260	20	300
GX300	2500	320	428	385	14	8	300	190	214	270		225	28	443	240	320	20	350
GX400	3000	420	528	492	14	8	350	190	224	340	300	280	30	533	320	400	25	430	1500 2000 3000
GX500	3000	528	662	612	17	8	450	190	280	400		340	35	662	400	500	25	490
GX600	3000	628	762	720	17	8	550	190	255	500		430	40	760	500	600	30	560
