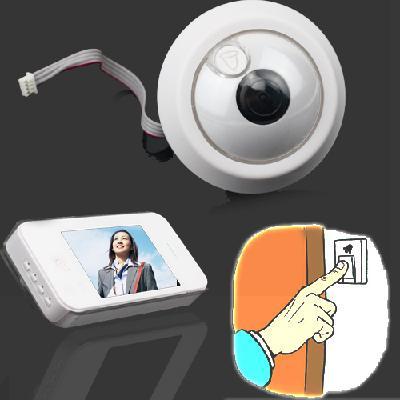

3.5 LCD Screen Digital Door Peephole Viewer

Features

1. 100% new product with high quality

2. 3.5inch TFT color display

3. Fits any color: 34.5-104.5mm (thickness)

4. Screen will automatically be in sleep model after 10seconds once press monitor button

5. Monitor outside anytime when press monitor button, each time will automatically take photo

6. Built-memory; can take 100pcs photos; cycle replacement

7. When visitor press call button, screen automatically turn on and take photo

8. Press UP/ Down key to view photos any time. Or select preview mode in menu, it will enter the slide mode to play automatically.

9. Menu setting: brightness adjustment; contract adjustment; color adjustment; language selection; date; time; photo's checking; delete photos

10. Contains Don't disturb function that will no ring sound, no view outside when anyone press call button

11. Super power saving: Support to view outside for more than 1200times

Product Installation

Step 1: As the picture shows, installed screws into the outdoor unit depend on the door thickness

Step2: Insert peephole lens through door and clevis from outside

Step3: Tighten the screw according to the thickness of the door

Ensure that the 4Pin wire has go though the door and clevis, and all is fixed

Step4: Plug 4Pin wire into socket on the back of indoor unit, then install the indoor unit into the clevis as picture show.

Specifications

1. Peephole barrel (diameter) : 12-34.5mm

2. Fits anydoor: 34.5-104.5mm

3. Camera Sensor: 300000 pixels

4. Powered by 3pcs AA battery (battery not included)

5. Screen Size: 3.5''

6. Package Size: 16.5 x 11.3 x 11.7cm

7. Camera Lens: view angle 150 degree

Package Included

1 x User Manual

1 x Peephole Viewerr

4 x Screws

1 x Clevis
