Summary:
3G video camera alarm, 3G alarm system with live monitor, 3G visual phone, could view live video in anytime, anywhere through 3G mobile phone, W-CDMA network.
3GP Image compression format, HD 1.3 million pixel CMOS color camera, standard 6mm lens (lens optional), Visual distance:. 15M, 53 degrees 360 degrees Rotation by built-in PTZ.
Special features:
Visual phone function, you can view the live video at any time any where.
1, This product use the most popular world wide network W-CDMA.
2, If the place has 3G signal, the image is clear and smooth, If there is no 3G signal, the system will automatically switch to 2G mode.
3, This system has 1CH video camera by itself, lens optional, visual distance is depending on the lens.
4, Built-in PTZ, 270 degree rotation.
5, Can be monitoring / listening in spot real time, dial in to remotely control the alarm system or PTZ rotation.
6, It can auto dial 6 groups video / audio alarm phone number, 3 groups MMS alarm phone number, 3 groups SMS alarm phone number.
7, Through video calling, you can control the PTZ for 270 degree rotation to monitor in spot by 3G mobile phone.
8, After alarming, we can take photos or recording to TF Flash card (Micro card) (Support maximam 4G TF Flash card)
9, External speaker is optional to the system, after viewing the video, you can shout to the thief directly from phone call, dual way talking. (Optional function)
10, Compatible with wireless doorway keyboard.
11, AC power off alarm function: When AC power is shut down suddenly, the built-in lithium battery can support the video alarm system and PTZ working normally, main host can choose SMS notice function.
12, Electronic ZOOM function, enlarge & minification up to *. It also has brightness adjustment (high or low) function.
13, Voice indication function: Remotely operation with voice indication for each step Friendly interface & suitable for user..
Optional Features:
1: FTP upload video and pictures to server
2: ODM: DIY function as customers request
Technical Parameters:
working condition | Working temperature | -10 ° C ~ + 45 ° C |
Relative humidity | 10%~95% | |
Atmospheric pressure | 86 ~ 106kpa | |
Environment yawp | ≤60dB | |
Technical Target | Arm / Alarm time delay | 00~99s |
Siren hooting time | 01 ~ 30m (over 30m, the siren will hoot all the time) | |
Host static current | (80 mA | |
Host alarm current | (200 mA | |
Power adapter | DC12V 2A | |
Compatible communication mode | HSDPA / UMTS / EDGE / GPRS / GSM | |
Operating frequency | 3G network model E: UMTS / USDPA 900 / 2100MHz | |
3G network model A: UMTS / USDPA 850 / 1900MHz | ||
2G / 2.5G network: GSM / GPRS / EDGE 850/900/1800 / 1900Mhz | ||
Video format | MP4 / 3GP | |
Resolution | 320*240 | |
Pixel | 1.3 megapixel | |
Infrared distance | 15m |

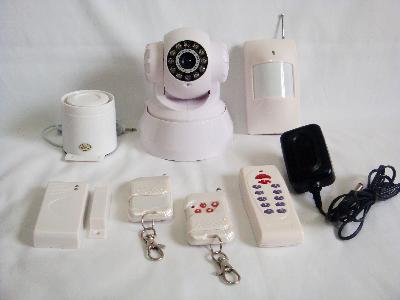

Standard Unit:
3G camera x 1
Camera bracket x 1
Remote control x 2
Door contact x 1
PIR motion sensor x 1
Power adapter x 1
Operation keypad x 1
External speaker x 1
Wired mini siren x 1
CD x 1
USB Data cable
