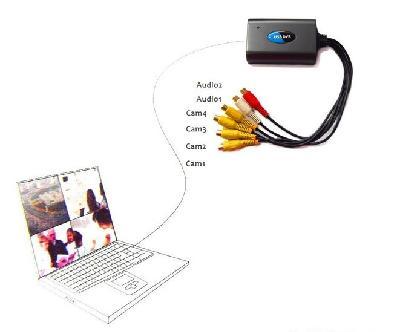

NEW 4 CHANNEL MINI USB DVR CAMERA VIDEO CAPTURE ADAPTER

Description:

• Schedule record mode; Motion detection mode; Sensor alarm record mode; Recycling record mode
• P.T.Z control function
• Support Multi-languages: English; German; Spanish; Portuguese; Japanese; Russian; Serbian
• MPEG4 compression format, greatly reduce HDD usage
• Powerful video playing back functions, including playing back, pause, stop, fast-forward, single-frame play and image capture.
• Support recorded files backup, delete by date / time, camera.
• Remote Surveillance and PT Z control through LAN, Intranet, and Internet.
• Support alarm pre-record.

Features:

• Schedule record mode
• Motion detection mode
• Sensor alarm record mode
• Recycling record mode
• P.T.Z control function
• Users management
• Multi-channel display
• Support 320x240 / 640x480 (NTSC), 352x288 / 704x576 (PAL) standard resolutions.
• Image color adjustable for each channel, including contrast, lightness, hue and saturation.
• MPEG4 compression format, greatly reduce HDD usage
• Powerful video playing back functions, including playing back, pause, stop, fast-forward, single-frame play and image capture.
• Support advanced search mode. Users can search by date / time, camera, record mode, and random combination of the three methods.
• Support recorded files backup, delete by date / time, camera.
• Convenient to extend system functions by software upgrade.
• CPU and storage resources saving by advanced technology
• Remote Surveillance and PT Z control through LAN, Intranet, and Internet.
• Support alarm pre-record.
• Support buzzer, email alarm out.
• Can greatly decrease fragmented files while using NTFS partition.
• User-friendly graphical user interface.

Specifications

• Format: PAL / NTSC
• Resolution: 640x480 (NTSC), 352x288 / 704x576 (PAL),
• Maximum Frame rate per channel: 25 fps (PAL), 30 ftp (NTSC)
• Screen set: resolution 1024 * 768, color quality 16 bits or 32 bits
• Compression code rate: 50kbps - 1.2Mbps
• Data format: MPEG4

System Requirements:

• P4 1.7GHz CPU or above
• 80G HDD and 256MB RAM, or above
• VGA card with 64MB memory
• Windows 2000 / XP / Vista
• Microsoft DirectX 9.0 or above
• One available USB 2.0 port

Package Contents:

• 1 x 4channel USB DVR CAMERA VIDEO CAPTURE ADAPTER
• 1 x USB connection cable
• 1 x Software and driver CD

Recording mode; Program
Motion detection mode;
Alarm recording mode; the sensor.
Loop recording mode.
P.T.Z; control action.
User Management.
Multi-channel display.
Support 320x240 / 640x480 (NTSC), 352x288 / 704x576 (man) standard resolution.
For each image color can be? Channels, including comparison of hue and saturation, and lightness.
Compression format m peg4, greatly reduce HDD usage.
Powerful video playback, including play, pause, stop, fast, innovative play and image capture.
Advanced search mode supports three methods users can search for date / time, camera, recording, random combinations of.
Support recorded files backup, delete from the date / time, camera.
System function expansion easy to upgrade software.
Central processor, memory resource conservation? With advanced technology.
Remote monitoring and control PTZ through LAN, intranet, the Internet.
Support the police in advance.
Bees, email alerts? Support.
It can greatly reduce the fragmented files? NTFS partition use.
User-friendly graphical user interface

Programmable recording mode / Motion detection mode / sensor alarm recording mode / loop recording mode

It supports user management

Support multi-channel display

Support 320x240 / 640x480 (NTSC system), 352x288 / 704x576 (PAL) was the standard resolution.

Support advanced search mode. Users can search for date / time, camera, record mode, and random combination of the three methods to search.

Through LAN; intranet; Internet can be remotely monitored and PTZ control

MPEG4 compression format, greatly reduce disk usage

Powerful video playback, including play, pause, stop, fast-forward, single-frame play and image capture.

Through software upgrades, system functionality can be easily extended

Supports both scheduled recording mode

Support buzzer, email alarm

Produced using NTFS partitions can greatly reduce the fragmented files

Friendly graphical user interface

System Requirements:

Processor: Intel Pentium 4 Celeron processor, minimum 1700MHz

Motherboard: Intel 845/865/915 series

Hard disk: 80G Minimum

Memory: 256M minimum

Graphics: GeForce2; GeForce4; FX5200; ATI Rage128

Operating System: Windows2000 (SP4 above) / 2003 (SP1 above) / XP (SP2 above) / Vista64 / win7 (32 / 64bits)

System Specifications:

Format: PAL / NTSC standard

Resolution: 320x240 / 640x480 (NTSC format), 352x288 / 704x576 (PAL format)

Each maximum frame rate: 25 frames (PAL standard), 30 (NTSC format)

Screen settings: 1024 * 76 816 color or 32-bit color

Compression rate: 50kbps - 1.2Mbps

Data format: MPEG4 format
