By CAT-5e UTP twisted pair HDMI signal extender | transmission distance 30 m
High Speed HDMI Extender by Cat5e UTP Cable up to 30M for Full HD 1080p NEW
Description:
The HDMI extender by CAT-5e / 6 uses two pieces of UTP cable with cross stand inside to extend the HDTV display up to 30 meters for 1080p. It not only breaks the limitation of the HDMI cable transmission length, but also CAT-5e / 6 has more flexibility and convenience in cable construction.
The length of HDMI cable is fixed and unchangeable after it is produced. Because the HDMI connector can only be soldered or terminated by the professional workers in factory, the users can not reduce or increase by themselves. However CAT-5e / 6 cables are available everywhere and be processed easily by the user or installer.
Because the header of the long HDMI cable is big, using it must in hidden method.
What's more, it is not easy to bend the HDMI cable and to pull it through the in-wall tube or tray. However, CAT-5e / 6 cable has no such problems.
Or the general HDMI cables, they must be customized when the length is over 10 meters
Specification:
| Signal Input | HDMI Signal |
| Input Video Signal | 5 Volts p-p (TTL) |
| Maximum Signal Link Range | 1920 x 1080p |
| Output Video | HDMI 1.2a |
| HDMI Input / output Connector | Type A 19 Pin |
| Video Amplifier Bandwidth | 1.65Gpbs / 165MHz |
| Vertical Frequency Range | 50 / 60Hz |
| Interlaced (50 & 60Hz) | 480i; 576i; 1080i |
| Progressive (50 & 60Hz) | 480p; 576p; 720p; 1080p |
| Operating Temperature | 0 ℃ to + 70 ℃ |
| Operating Humidity | 10% to 85% RH (no condensation) |
| Storage Temperature | -10 ℃ to + 80 ℃ |
| Storage Humidity | 5% to 90% RH (no condensation) |
| Power Supply | 5V DC |
| Power consumption (Max) | 5W |
| Converter Unit | FCC; CE; UL |
| Power Supply | UL; CE; FCC |
| AC Power Adapter | US standard, UK standard and so on |
| User Manual | English Version |
|
|
|
|
|
|
|
|
|
Product Features:
* One pair as a full functional module, no need of setting.
* CAT-5e / 6 cable can substitute HDMI cable to achieve long distance transmission.
* Follow the standard of IEEE-568B.
* Transmission distance can be up to 30 meters for 1080p using UTP Cable with cross stand inside.
* Support HDMI 1.2a
* Support highest video resolution 1080p.
* Support 165MHz / 1.65Gbps per channel (4.95Gbps all channel) bandwidth.
* Support 8bit per channel (24bit all channel) deep color.
* Support uncompressed audio such as LPCM
Package Included:
* 1 x Receiver

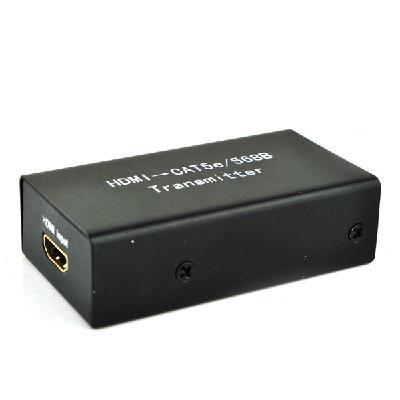

* 1 x Transmitter
1 x Power Adapter
* 1 x User Manual
Alternate use CAT5e CABLE HDMI CABLE to complete long-distance transmission.
1080P can transmit up to 30 meters
