Specifications

Primary Function: Computer video signal to S-Video or component video (TV)

Additional Functions: Split video signal to both LCD computer monitor and TV

Input:

- 1 x VGA cable IN

Outputs:

- 1 x VGA cable OUT

- 1 x S-video OUT

- 1 x Component cable out (RCA yellow)

On Board Buttons:

- S-Video Switch ON / Off

- PAL / NTSC

- Menu

- Zoom

- UP

- Down

- Right

- Left

Menu Options: - Flicker; H-Position; V-Position; Brightness; Saturation; Sharpness

Video output system options: NTSC / PAL

VGA system options:

- 640 x 480 @ 60/72/75/85 Hz

- 800 x 600 @ 60/75 Hz

- 1024 x 768 @ 60/75 Hz

Certification: FCC, CE

Dimension: L: 100 x W: 60 x H: 26 (mm)

Package included:

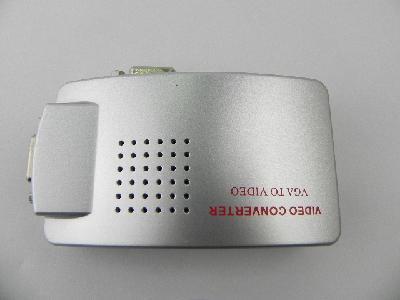

1 X VGA to RCA S-Video Converter Box

specification



The main functions: computer-video signals, S - video or component video (TV)

Additional features: split the video signal, LCD computer monitors and TV

enter:
- 1 VGA cable

Output:
- 1 VGA cable OUT
- 1 S- Video output
- 1 component cable output (yellow RCA)


Board buttons:
- S - Video Switching On / Off
- PAL / NTSC standard
- menu
- enlarge
- up
- down
- right
- left


Menu options: - flashes; horizontal; vertical position; Brightness; Saturation; clarity

Select the video output format: NTSC / PAL

VGA system options:
--640 * 480 @ 60/72/75/85 Hz
- 800 * 600 @ 60/75 Hz
--1 024 * 768 @ 60/75 Hz


Certification: FCC, CE

Dimensions: Length 100 x width 60 x height: 26 (mm)
