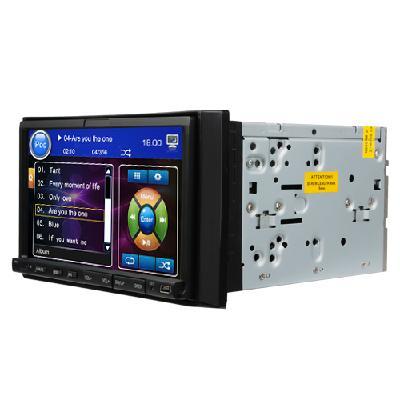

7 inch two din decline analog touch screen, support for DVD / SD / USB / Radio
Item specifics
Brand: Unbranded / Generic
Features: DVD Player
Screen Size: 7
Unit Size: 2 DIN
Cables: power, usb cables
Model: Universal
| Model NO | TH813NN Dip down the simulation screen |
| Highlights | • 7 inch TFT touch screen • Built-in Radio, RDS • Support 2ch vedio output • Support rearview camera input • USB / SD card port • Compatible with DVD / VCD / CD / WMA / AVI / MP3 / CD-R / RW / DVD-R / RW etc • Sub-Woofer Output with Variable Frequency Control • Contrast / Brightness adjustment • 4X45W maximum power output |
| Car types | Universal |
| Support Audio Type | WMA9; MP3; WAV |
| Support Video Type | Wmv, avi |
| Card Supported | SD card |
| GPS Resolution Output | 480*234 |
| System | |
| Form Factor | In Dash |
| Enclosure Type & Security | 2 Din |
| Display | |
| Screen Dimension | 7 inch 16: 9 |
| Screen Type | TFT Touch Screen |
| Screen Resolution | 480*234 |
| Language | |
| Main Interface Language | English; Francais; Espanol; Italiano; Russian; Deutsch; Arabic; Chinese |
| Radio | |
| AM Frequency Range | 522-1620 (Europe), 530-1710 (America), 522-1623 (Russia), |
| FM Tuning Range | 87.5-108 (Europe), 87.5-107.9 (America), 65.0-108.3 (Russia) |
| RDS | Yes |
| DVD | |
| Buffer time | CD / MP3 10s / 18s |
| Media type | DVD / DVD / DVD / DVD / DVD / DVD / DVD / DVD / DVD / DVD / DVD / DVD / DVD / DVD / DVD / DVD / DVD / |
| Signal-To-Noise Ratio | ) 60db |
| Media player information | |
| Video formats supported (up tp 1080p): | WMV / MPEG4 / MPEG5 / AVI (DIV-X) / AVI (X-VID) / VCD |
| Audio formats supported | MP6 / WMA / AAC |
| Image formats supported | JPG |
| Connection | |
| Video Input | 1ch |
| Video Output | 2ch |
| Audio Input | 2ch |
| Audio Input | 4.1 channel |
| USB / SD Card Port | USB / SD (MAX 32GB or (1500 files) |
| Subwoofer Output | Yes |
| Additional Features | |
| Portable HDD Compatible | No |
| Built-in Speaker | Yes |
| CDC (CD Charger) | No |
| Motorized slide-down Face | Yes |
| Anti-Shock | Electronic & Mechanical |
| Steering wheel control | Power / Return / Band / Mode / Dial / Disconnect / Mute / Previous / Next / Volume / Play |
| General | |
| Features | FM / AM; USB / SD; DVD; RDS; Steering wheel control |
| Color | Black |
| Dimensions / WxDxH | 167 * 182 * 100mm (LWH) |
| Operation temperature | -10° C to 50 ° C |
| Storage temperature | -20 ° C to 75 ° C |
| Net Weight | 2.9kg |
| Warranty | 1 year |
| Package Contents | 2 din car DVD |
| Remote control | |
| Metal fasteners and screws | |
| USB cable | |
| User manual | |
| Front frame | |
| Power cable |
