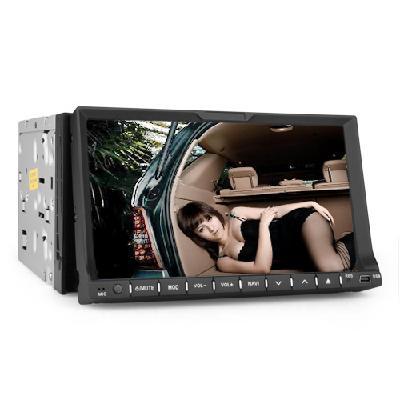

Double Din 7 inch digital screen Universal declined DVD | Bluetooth / GPS / IPod / RDS, especially UI interface
Double Din 7 inch digital screen Universal declined DVD | Bluetooth / GPS / IPod / RDS, especially UI interface
Item specifics
Brand: Unbranded / Generic
Model: 7inch 2din car dvd
Features: DVD Player
Screen Size: 7
Unit Size: 2 DIN
color: black
| Model NO. | TH820GA Double Din decline Digital Screen With Bluetooth |
| Highlights | • 7 inch TFT digital touch screen • Built-in GPS; Bluetooth; TV; IPod; RDS • Support 2ch vedio output • Support rearview camera input • USB / SD card port • Compatible with DVD / VCD / CD / WMA / AVI / MP3 / CD-R / RW / DVD-R / RW etc • Sub-Woofer Output with Variable Frequency Control • Contrast / Brightness adjustment • 4X45W maximum power output |
| Car types | Universal |
| GPS | yes |
| Operating system | Microsoft Windows CE 6.0 |
| Main Frequency | SiRF Altas IV (ARM11, 533MHz) |
| Chip | SiRF Altas IV |
| Store Space | 64M |
| Navigation Software Storage | support SD / MMC / SDHC (Max for SDHC 4GB ~ 32GB) |
| Support Map | IGO; Route66; Sygic; Garmin; Polnav |
| Support Audio Type | WMA9; MP3; WAV |
| Support Video Type | wmv, avi |
| Card Supported | SD card |
| GPS Resolution Output | 480*800 |
| System | |
| Form Factor | In Dash |
| Enclosure Type & Security | 2 Din |
| Display | |
| Screen Dimension | 7 inch 16: 9 |
| Screen Type | Digital TFT Touch Screen |
| Screen Resolution | 800*480 |
| Picture in picture | No |
| Background picture changeable | No |
| Function icons removeable | No |
| Language | |
| Main Interface Language | English; Francais; Espanol; Italiano; Russian; Deutsch; Arabic; Chinese |
| GPS Console Language | English; Deutsch; España; Italiano; Française; Português; Russian; Chinese simplified; Chinese traditional |
| GPS Voice Guidance Language | Support map language |
| Radio | |
| AM Frequency Range | 522-1620 (Europe), 530-1710 (America), 522-1621 (Russia), |
| FM Tuning Range | 87.5-108 (Europe), 87.5-107.9 (America), 65.0-108.1 (Russia) |
| RDS | Yes |
| DVD | |
| Buffer time | CD / MP3 10s / 16s |
| Media type | DIVX / DVD / DVD-RS / DVD + RS / DVD-RW / VCD / CD-R / CD-RW / MP3 / MP5 / WMA / AVI |
| Signal-To-Noise Ratio | ) 60db |
| TV tuner | |
| Digital TV or Analog TV | Analog TV |
| DVB-T information | No |
| Media player information | |
| Video formats supported (up tp 1080p): | WMV / MPEG4 / MPEG3 / AVI (DIV-X) / AVI (X-VID) / VCD |
| Audio formats supported | MP4 / WMA / AAC |
| Image formats supported | JPG |
| Bluetooth | |
| Version | V2.1 |
| Functions Accept Key | Hang up call; redail; reject; accept call |
| Built-in microphone | Yes |
| Received Call | Yes |
| Dialled Call | Yes |
| Missed Call | Yes |
| Connection | |
| Video Input | 1ch |
| Video Output | 2ch |
| Audio Input | 2ch |
| Audio Input | 4.1 channel |
| USB / SD Card Port | USB / SD (MAX 32GB or (1500 files) |
| Subwoofer Output | Yes |
| Ipod Control | Yes (Connection Cable for Ipod Included) |
| Additional Features | |
| Portable HDD Compatible | No |
| Built-in Speaker | Yes |
| CDC (CD Charger) | No |
| Motorized slide-down Face | Yes |
| Anti-Shock | Electronic & Mechanical |
| Steering wheel control | Navi / Mode / VOL- / VOL + / Mute / Previous / Next / Play |
| General | |
| Features | GPS; Radio / RDS; TV; Bluetooth; Ipod suport; Steering wheel control |
| Color | Black |
| Dimensions / WxDxH | 165 * 178 * 100mm (LWH) |
| Operation temperature | -10℃-50℃ |
| Storage temperature | -20℃~75℃ |
| Net Weight | 3.057kg |
| Warranty | 1 year |
| Package Contents | 2 din car DVD |
| Remote control | |
| Magnetic GPS antenna (4m wire) | |
| Metal fasteners and screws | |
| iPod and USB cable | |
| User manual | |
| Front frame | |
| Power cable | |
