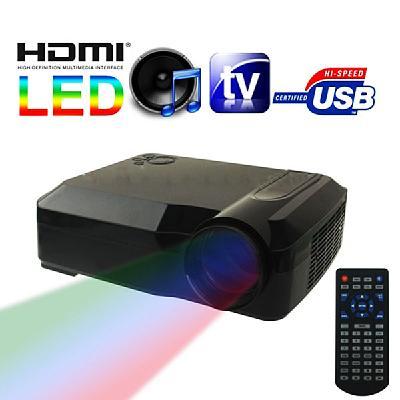

| model | EPW5801A |
| Optical parameters | Technology Type: | More active matrix TFT LCD (PVI monolithic 5 inches LCD). Monolithic LCD + LED technology |
| Physical resolution: | Native WVGA / 1280 * 768 Pixels |
| Maximum resolution is compatible with: | 1.44 million pixels, support 1080P |
| brightness: | 2000 lumens |
| Contrast: | 1000: 1 |
| (Aspect ratio) Aspect ratio: | 4: 3/16: 9 |
| Displayable colors: | Full true color (1.67 million) |
| Projection: | Front; Rear; hanging cast |
| Keystone Range: | ± 15 ° vertical Manual correction |
| smart system | | |
| The latest Android smartphone operating system Android 4.04 |
| 1. 4GB of storage space | |
| 2. Built-in WIFI wireless network (802.11b / g), 10M / 100M adaptive Ethernet card | |
| 3. Support network television broadcast | |
| 4. Support the domestic and international network on-demand movies | |
| 5. Support wireless keyboard and mouse | |
| 6. Video format: RM / RMVB; MPEG; MKV; AVI; FLV; VP8 up to 1080P | |
| 7. Audio formats: MP3; WMA; OGG; FLAC; WAV; AAC; APE | |
| 8. Picture format: JPEG; BMP; GIF; PNG | |
| 9. The built-in browser | |
| 10; support for instant online chat QQ MSN online cinema; online games | |
| 3D compatibility | 3D-ready: | Meet and support the red and blue; red and green 3D sources basic specifications; with 3D image noise reduction function |
| compatibility | Computer Compatibility: | IBM PC and Compatibles; Apple Macintosh; iMac; and VESA Standards |
| 1080p (1920x1080), WSXGA + (1680 x 1050) WXGA + (1440 x 900), |
| WXGA (1280 x 800, 1280 x 768), UXGA (1600 x 1200), |
| SXGA + (1400 x 1050), SXGA (1280 x 1024), XGA (1024 x 768), |
| SVGA (800 x 600), VGA (640 x 480) |
| Horizontal scan frequency: | 15 - 150 kHz (depending on resolution) |
| Vertical scanning frequency: | 48 - 190 Hz (depending on resolution) |
| Video Compatibility: | NTSC (3.58 / 4.43), PAL (B / D / G / H / I / M / N), SECAM (B / D / G / K / K1 / L) |
| HDTV (720P; 1080i; 1080P), EDTV (480p, 576p), SDTV (480i, 576i) |
| Optical elements | Throw Distance: | 2M ~ 4M |
| light bulb: | Led Lamp 100W |
| Lamp life: | Expected life of over 20,000 hours |
| input Output | Computer signal: | * 1 x VGA / Component Input |
| video: | * 1 x YPbPr component video (3xRCA) |
| * 1 x S-video (4-Pin mini DIN) |
| * 1 x Video (YPbPr / CbCr) |
| * 2xHDMI |
| * 1 x TV Tuner (optional) |
| | * 3xUSB |
| Audio: | * Lin, Rin |
| * Lout, Rout |
| Packing Accessories | Data line: | 1.5 m VGA cable, 1.5 m power cable, 1.5 m three-color audio and video cable |
| Optional HDMI high-definition cable, and other special-length data lines can be customized |
| Standard accessories: | Remote control; Manual Instructions; lens cap |
| Optional accessories: | Projection screen and portable package |
| | Built-in high-quality 2 * 3W speakers |
| Basic Information | OSD menu language | Chinese, English and other 8 kinds of international language |
| Volume (length x width x height): | Bare metal Dimensions: 325mm * 260mm * 140mm Package Size: 385mm * 310mm * 200mm |
| weight: | About 3.9Kg |
| Power requirements: | AC 50/60 Hz, 110 ~ 240 V |
| Total power: | 120W |
| Operating temperature: | (+5℃~+35℃) |
| Operating Humidity: | 10% - 65% (non-condensing) |
| Storage conditions: | Temperature (-10 ℃ ~ + 60 ℃), humidity (10% to 90%) |
| Product color: | black White |
| Lamp life depends on many factors, including the bulb mode, display mode, usage, environmental conditions, etc. lamp brightness over time can gradually decay is a normal phenomenon. ANSI lumens is the American National Standards Institute to develop measuring projector flux The method, measuring the brightness of the projected image screen is the one square meter image into nine average measured light values of each center, and then calculated the average of nine distance between the projector and the screen is 2.4 m for standard screen 60 inches or less, above the brightness of the Company's self-test is only a reference value is not defined as final, is continuing to enhance our product quality, and the information mentioned in this publication are subject to change without notice; listed in the text Photos represent part configuration of this model, the actual shipping specifications and styles may vary according to each region |
