Alcohol recovery alcohol recovery column applies to dilute the pharmaceutical, food, light industry, chemical industry, also applies to other solvents such as methanol distillation of coal products.

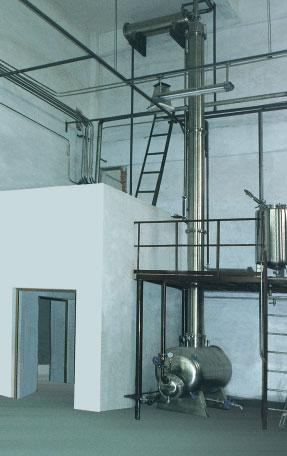

Device Architecture alcohol recovery tower

Alcohol recovery tower bottoms consists of six parts, the tower, condenser, cooler, buffer tank, high tank, is suitable for pharmaceutical, food, light industry, chemical industry, dilute alcohol recovery, the equipment and material contact parts They are made of stainless steel SUS304 or SUS316L manufacture, has good corrosion resistance and energy saving, environmental protection, reduce production costs and improve efficiency advantages. The device can be 30 degrees to 50 degrees dilute alcohol distillation to 93 degrees to 95 degrees, discharge residue containing low alcohol degree, in line with environmental requirements.

The device uses high efficiency stainless steel packing, access to some materials made of stainless steel, matt outer surface of the device, in line with the GMP standards.

Technical Parameters

Alcohol recovery tower technical parameters

parameter	JH-200	JH-300	JH-400	JH-500	JH-600	JH-800
Tower diameter	200	300	400	500	600	800
M tower height	6	7	7	11	11	11
Kettle volume L	600	1120	1450	2200	2200	2200
Recovery capacity L / h	60-80	100-120	120-150	350-400	350-400	350-400
Recycling concentration	93%~95%	​	​	​	​	​
steam pressure	0.09Mpa	​	​	​	​	​
System pressure	Atmospheric pressure	​	​	​	​	​
Condensation area	6.7	8.8	11	30	30	30
Cooling area	2	3	​	10	​	10
Net weight	1250	1800	2200	6500	6500	6500
Length mm	2300	2600	2600	4000	4000	4000
Width mm	700	800	1000	1800	1800	1800
Height mm	8000	9000	10000	11000	12000	14000

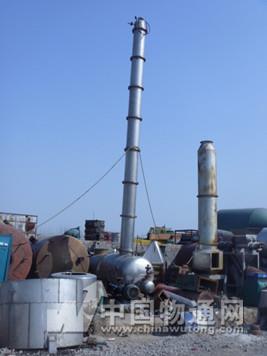

Used alcohol recovery tower Supply @% Used alcohol recovery tower Liangshan used alcohol recovery tower prices.
