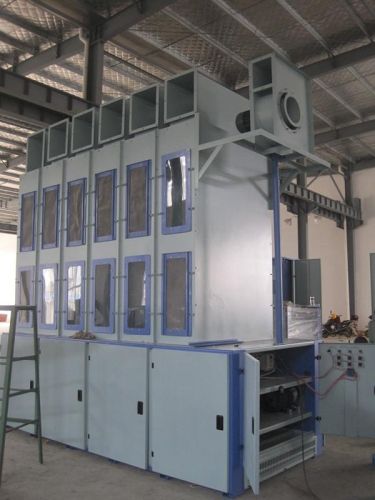

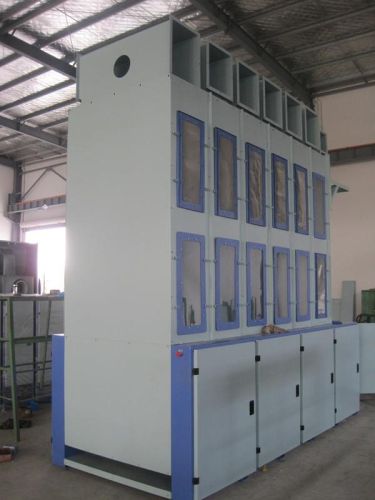

Z multi-warehouse blending tank

bargain

Product Usage
1. Multi- bin blending tank
Cotton is fed by a windmill every cotton warehouse, the micro-pressure switch control cotton bit different cotton warehouse differential output to achieve high-powered blending function, the air flow will feed back road equipment delivery .
Standard machine height 4200mm, plant height chosen to follow a special height 3200mm or 5200mm, and reserves due consideration should be mixed several different positions selectable number 468 cotton .
2. High mixing number of permutations
2 blender string arrangement to take to 4 and 6 cell grid arrangement, for example, use 4 cell 6 cell 24 times the effect can be obtained. Machine height 4200mm, working width 1200mm.
Cotton warehouse store within about 600kg, production line 600kg / h capacity, may have a long cycle blending effect, the current face of the device when a transient fault, there is sufficient time to react .

Main Specifications

model	KM4X	KM6X	KM8X
Capacity (kg / h)	1200
Power (kw)	4.5	9	9
Windmill power (kw)	3.75
Dimensions ( L * W * H ) (mm)	250016404200	400016404200	500016404200
Dust demand	4200m3 / hr-75mmv-c of suction
