RadEye series of portable nuclear radiation measuring instrument

Plot:

RadEye is the most advanced portable multifunction nuclear radiation measuring instrument, using a ThermoFisher the NBR patented technology.

ADF advanced filtering technology and low-power technology, with excellent performance, can be used to detect α, β, γ, X-ray and neutron radiation. There RadEye PRD, RadEye-G, RadEye-N, RadEye AB100, RadEyeB20 and RadEye Area Monitor and other models can be used in industrial, border, customs, nuclear emergency, terrorism, security, fire protection, hospitals and pharmaceutical and many other fields.

Features:

Ø Advanced radiometric performance

Ø rapid radiation response

Ø with overload protection

Ø Powerful data storage capacity

Ø Fully automatic self-test

Ø advanced low-power technology

Ø excellent anti-electromagnetic interference capability

Ø Very low maintenance costs

Ø pull-down menu user interface

Ø Easy to use, that is, learning that is used

Ø can set the sound, vibration and headset mode alarm

Ø Compact; lightweight; easy to carry

Ø protruding ergonomic key design

Ø You can use ordinary batteries or rechargeable batteries

RadEye PRD / PRD-ER portable γ meter:

Detection: NaI (Tl)

Measuring range:

RadEye PRD: 0.01 μSv / h-250 μSv / h

RadEye PRD-ER: 0.01μSv / h-100mSv / h

Energy range: 60 Kev-1.3 MeV

Sensitivity (Cs-137): 150 cps per μSv / h

Sensitivity (Am-241): 2000 cps per μSv / h

Radeye G / G-10 portable personal dose detector

Ø Detector: energy compensated GM tube

Ø measuring range:

RadEye G: 5 μR / h - 10 R / h

Radeye G -10: 0.05μSv / h-50mSv / h

Ø energy range:

RadEye G: 45 keV - 1.3 MeV

RadEye G-10: 50 keV - 1.3 MeV

Ø Sensitivity (Cs-137): 1.7cps per μSv / h

Ø sensitivity (Am-241): 2.0cps per μSv / h

Beijing Science and Technology Development Co., Ltd. Hua Ruisen

2 seat on the 16th floor, Building A perfect circle square and Guanghua Road Beijing Tongzhou District, Tongzhou Industrial Development Zone

Tel / Fax: 010-57118919 (straight line) 010-51266093 (switchboard) 18001279800

QQ: 1275041125

Postal Code: 101113

E-mail:. Huarui51266093 @ 163 com

http: //www.huaruison.com

RadEye B20 Portable αβ surface contamination measuring instrument:

Key performance indicators:

Detector: Pancake type GM counter

Window diameter: 44mm

Window surface density: 1.8 ~ 2.0 mg / cm²

Measuring range: 0 ~ 100Kcps; 5 μSv / h ~ 10mSv / h (for Cs-137)

Energy range: 17keV ~ 1.3MeV

Size: 325px * 175px * 150px

Weight: 300g

RadEye AB100 Portable αβ surface contamination measuring instrument:

Key performance indicators:

Detector: zinc-coated plastic scintillator detector

Sensitive area: 2500px ²

Detection efficiency: 36% (Am-241); 23% (Co-60); 49% (Sr / Y-90)

Gamma response: ~ 40 s ^-1 / (ΜSv / h) (for Cs-137)

Units of measurement: Bq, Bq / cm ² , Dpm

Size: 887.5px * 10 cm * 450px

Weight: 900g

Beijing Science and Technology Development Co., Ltd. Hua Ruisen

2 seat on the 16th floor, Building A perfect circle square and Guanghua Road Beijing Tongzhou District, Tongzhou Industrial Development Zone

Tel / Fax: 010-57118919 (straight line) 010-51266093 (switchboard) 18001279800

QQ: 1275041125

Postal Code: 101113

E-mail:. Huarui51266093 @ 163 com

http: //www.huaruison.com

RadEye N / NL portable neutron measurement instrument:

Key performance indicators:

Detector: He-3 counter tube

RadEye N: He-3 管 (10 bar)

RadEye NL: He-3 管 (2.5 bar)

Sensitivity: ~ 0.3cps / μSv / h (for Cf-252)

The bottom (at an altitude of 300 m): ~ 0.005cps

Gamma Crosstalk: (0.2cps (for 10 mSv / h of Cs-137 radiation)

Units of measurement: cps

Size: 96mm * 61mm * 31mm

Weight: 160 g

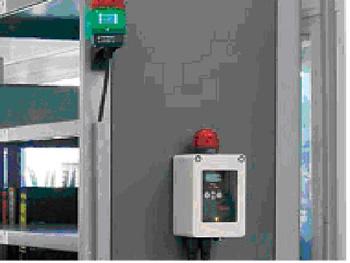

RadEye Area Monitor area radiation monitor:

Plot:

RadEye series combination of a variety of radiation meter area monitoring device that can be applied to regional monitoring of gamma and neutron, and also to meet the needs of portable patrol For example, a wide range of applications in the industrial field level meter, density meter, moisture gauge and thickness gauge and other process monitoring devices contain strong sources, the need for radiation safety and production management, these devices must be on radiation monitoring, RadEye Area Monitor area radiation monitor is to meet these We need the best choice.

Features:

Monitor gamma and neutron radiation sources or devices containing source

Having local and remote alarm

RS-232 Interface

You can use the AC 220V or DC 24V power supply

Easy installation

Make use radiation meter patrol

Beijing Science and Technology Development Co., Ltd. Hua Ruisen

2 seat on the 16th floor, Building A perfect circle square and Guanghua Road Beijing Tongzhou District, Tongzhou Industrial Development Zone

Tel / Fax: 010-57118919 (straight line) 010-51266093 (switchboard) 18001279800

QQ: 1275041125

Postal Code: 101113

E-mail:. Huarui51266093 @ 163 com

http: //www.huaruison.com

R500-utility αβγ and X radiation meter

USB port

High sensitivity of the sensor

Computer data analysis software

Can detect α; β; γ; Χ-ray

Large-screen high-definition LCD display

HR500-utility αβγ and X radiation scanner. Uses two inches large flat spiral type sensor manufactured US Bureau of Standards.

High sensitivity, can be α, β, γ and Χ-ray intensity for rapid detection. With the correction factor function, customers can self-tune

Entire calibration parameters; provides average time setting function, reflecting the substantial increase in sensitivity R500 digital radiation meter in line.

Ergonomics; anti-saturation circuit can avoid electromagnetic interference; calibration having a safety function; avoiding staff spoke calibration

Radio contact with the European CE product certification standards, ISO9001 quality certification.

application

HR500-utility αβγ and X radiation scanner; it can be widely used in the restaurant; Hotel; Family; public places; laboratory; mining

Quarry; metal processing plant; oilfields and oil pipeline equipment; environmental protection; the police and other departments; for:

Check food contamination

Check ambient pollution

Check the drill pipe and equipment underground radioactive

Radiological examinations stone and other building materials

Radiological examinations porcelain tableware glass, etc.

Check local radiation exposure and radioactive contamination

Check nuclear radiation risks landfills and garbage dumps

Check the harmful radiation valuable personal property and jewelry

Detection became a doctor to use X-ray intensity X-ray instrument industry

Features

R500-utility αβγ and X radiation meter open the slide; can detect α; β; γ and Χ-ray

500 multifunction αβγ and X radiation scanner close the slide; sensor to get double protection; γ and Χ-rays can detect

Technical performance:

R500-utility αβγ and X-ray radiation measured species α; β; γ and Χ-ray

R500-utility αβγ and X radiation meter measurement range

Radiation dose rate: 0.01μSv / h-1000μSv / h, 0.001mR / hr-

100mR / hr

R500 Multi-function digital radiation meter pulse dose rate: 0-300000cpm, 0-5000cps

Radiation dose accumulated value: 0.001μSv-999Sv

Sensitivity 3500CPM / mR / hr (for Cs-137);

HR500-utility αβγ and X radiation scanner sensor

Large GM tube, the effective diameter of 45mm, mica window density 1.5

2.0mg / cm2

R500-utility αβγ and X radiation meter output port

USB Port (Optional dedicated USB cable extension cord, may be extended to

100 m)

The average time of 32 seconds by default, you can manually between 2 seconds and 120 seconds, or automatically adjustable

Display large-screen digital LCD, with bar graph display

effectiveness

Sr-90 (546KeV, 2.3MeV βmax) of about 75%; C-14 (156KeV

βmax) approximately 11%; Bi-210 (1.2 MeV βmax) of about 64%; Am-

241 (5.5MeV α) of about 36%

Antisaturation

In more than 100 times the maximum reading of the occasion, held at full scale reading

degree.

Correction can be adjusted directly correction factor:

Alarm function can be set freely alarm value, default is 5μSv / hr

Accuracy ± 15%

Memory function can store two one thousand data, manual or automatic storage

Software enables real-time remote to the computer numeric; display; analysis; Record

Detectors Operating temperature -40 ℃ to 75 ℃

Weight 450 g

毫米 dimension L 300, W 90 毫米, H 40 毫米

Power 3 AA batteries, can work for 30 days

Quality certification European CE, US FCC15

Host year warranty period

R500-utility αβγ and X radiation meter Option: telescoping pole

Model: MP-4

Number of section 4

The maximum diameter Φ 25.8mm

The maximum height 3825px

Equivalent to the height of 1225px

Weight (kg) 0.32kg

Purpose: remote detection of nuclear radiation, to avoid human radiation

Rays.
