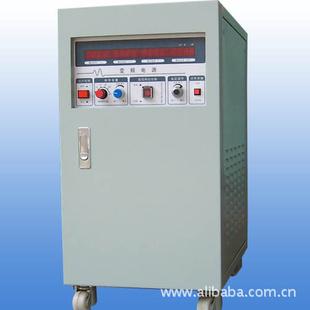

AF60-11001 1KVA variable frequency power supply

bargain

Input voltage: 1 (v)	Waveform distortion: 1 (%)	Frequency voltage regulator: 1 (%)
Output voltage: 1 (v)	Load voltage: 1 (%)	Circuit mode: SPWM switch
Load type: mixed load	Customized processing: Yes	Efficiency: 1 (%)
Range of application: home appliance manufacturing	Type: single phase inverter power	Model: AF60
Output frequency: 1 (Hz)	Brand: ACS	Product certification: CCC
Control mode: pulse-width modulation	Input frequency: 1 (Hz)

(Product brief)

For historical reasons, world indices are not unified national power grids, which earn foreign exchange through exports, resulting in a disorder. Our company combines technical research and production of military products export to simulate network conditions in different countries, and has the function of frequency-stabilized regulator AF60 series programmable inverter power supply. The inverter is intended for import and export of electrical transformer, frequency test and the design and manufacture of power supply can provide world standard voltage and frequency, the output voltage, frequency stepless adjustable digital output, stable output sine wave purity that eliminates interference, particularly applicable to the export of electrical products voltage, frequency conversion test; Laboratory, metrology room and other departments for various precision testing; And 60Hz for imported equipment for power supply inverter.

(Main features)

1. low-distortion noise, enter 357 odd filtering, network interference, output fully isolated, secure and reliable

2. very fast dynamic response, load 0-100% changes, the steady-state response time (0.1S.

3. output voltage: low: 0-150V, top-end: 0-300V adjustable

4. output frequency: fixed frequency 50/60/100/200Hz; FM 45-65Hz adjustable

5. actual measurement of electric parameters appear: output frequency; Output voltage; Output current; Output power and power factor

(Standard)

(GB7260-87 uninterruptible power supply equipment) (Q/01AK001-2005 program-controlled frequency power supply)

(Technical data)

Model			AF60-500	AF60-11001
Capacity			500VA	1KVA
Size (l * w * h)			410440135 (mm)
Grade			High-end industrial products
Working principle			IGBT/SPWM pulse-width modulation
AC input	Phase		Single phase
	Voltage		220V±10%
	Frequency		50HZ±5%
AC output (The standard sine wave)	Phase		Single phase
	Voltage		Low 0-150V (continuously adjustable) upscale 0-300V (adjustable)
	Output limiting current		4.2A (L)		8.4A (L)
			2.1A (H)		4.2A (H)
	Frequency		60HZ/45-60HZ (adjustable)
Frequency stability			≤±0.01%
Load stability			≤±1%
Rates of voltage regulator			≤1%
Waveform distortion			THD ≤ ± 3% (resistance load)
Power factor			0.85
Efficiency			≥85%
Reaction time			(20ms
Adaptive load			Type restriction-free, inductive and capacitive load amount needs to be used.
Panel display			Digital display: output frequency; Voltage; Current electricity; Power/power factor
Protection device			Input without Fuse switch; Output Fuse switch; Over voltage; Current; Overload; Automatic over-temperature and short circuit protection and alarm
Noise			(50dB
Insulating reactor			500Vdc 20M ω or more
Pressure resistance insulation			1800Vac/5Ma/1 minutes
Cooling device			Fan forced cooling
Chassis structure			Paint film surface quality of the three-tier, thin orange line
Electromagnetic compatibility			References GJB151A-97, and GJB152A-97 requirements
Use environment		Working temperature	-10~50℃
		Relative humidity	0-90% (non-condensing)
		Altitude	2000 meter
Notes		Power supply according to the modular design, easy to repair and replace parts. In accordance with the standards on ship vibration test, strengthening anti-vibration, ensure the reliable performance after long-distance transport. Parameter adjustment has been completed, still keeps its original settings. RS232/485 communication monitoring optional communication interface. According to the customer request voltage, frequency and other parameters can be customized.
