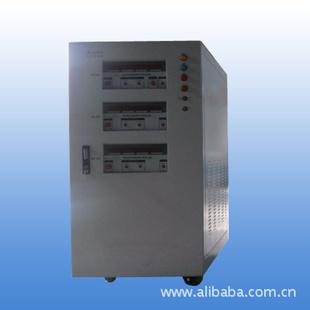

LED lighting test ballasts for 500W power inverter

bargain

Input voltage: 1 (V)	Waveform distortion: 1 (%)	Frequency regulation of: 1 (%)
Output voltage: 1 (V)	Load regulation: 1 (%)	Circuit mode: SPWM switching
Load Type: Mixed loads	Custom processing:	Efficiency: 1 (%)
Applications: IT industry	Type: variable voltage variable frequency power supply	Model: AF60
Output frequency: 1 (Hz)	Brand: ACS	Product Certification: CCC
Control mode: Pulse width modulation type	Input Frequency: 1 (Hz)

The country's first transistor converters experts; anti irreplaceable mainly used in tape recorders; audio; switching power supply SPS computer EMI / EMC test

Applications

Need to change the frequency of the test power, aerospace industry, national defense, ballast, switching power electrical products.

LED lighting test; ballast testing; computer peripherals; computer monitors; the export of household electrical appliances; OA Product Testing

Inverter Specifications (single-phase series)

Input voltage: AC110V (Select) or 220V ± 10%
Input Frequency: 50Hz or 60Hz
The output voltage: 0-150V or 0-300V two tranches of 10 revolutions fine tune
Output frequency: 50/60 / 400Hz, VAR47-63Hz
Load regulation: ≤±0.5%

effectiveness: ) 85%
Harmonic distortion: ≤0.3-0.5%
Frequency regulation rate: ± 0.01Hz
Protection: overload, short circuit protection
Warning device: buzzer and lights

model	AF60-500VA	AF60-11001	AF60-11002	AF60-11003	AF60-11005	AF60-11010
capacity	500VA	1KVA	2 KVA	3 KVA	5 KVA	10 KVA
Input voltage	1Ø2W110V or 220V		1Ø2W200V ± 10%
The output voltage	Low-grade 0-150V, high-grade 0-300V
Output current	4.5/2.25A	8.4/4.2A	16.8/8.4A	25/12.5A	42/21A	84/42A
Total all wave distortion	≤0.3-0.5%
Size (W.H.D / mm)	430178460	430240550	430460550		480940600	4801500600
Weight (KGS)	45	60	85	150	200	300

※ other special custom specifications acceptable
※ Specifications are subject to change without notice, please prevail in kind.
