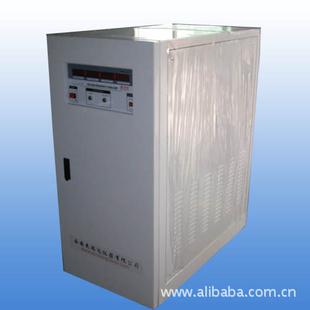

Frequency stabilization power supply
bargain
add to cart| Input voltage: 1 (V) | Waveform distortion: 1 (%) | Frequency regulation of: 1 (%) |
| Output voltage: 1 (V) | Load regulation: 1 (%) | Circuit mode: SPWM switching |
| Load Type: Mixed loads | Custom processing: | Efficiency: 1 (%) |
| Applications: Motor | Type: Regulator power inverter | Model: AF50 |
| Output frequency: 1 (Hz) | Brand: ACS | Product Certification: CCC |
| Control mode: Pulse width modulation type | Input Frequency: 1 (Hz) |
The regulator frequency stabilization power supply voltage frequency components mainly for remote areas grid voltage and frequency fluctuations or generators, which led to the load device is not working properly design and development, the bad power supply can be regulated, steady frequency processing, output quality, highly reliable frequency stabilization power supply voltage, avoids the voltage and frequency fluctuations, large waveform distortion and the load equipment hazards, with mountain Jie licensing regulators frequency stabilization power supply electrical equipment is safe, reliable the best guarantee of operation.
The power and load power factor
model | AF50-13005 | ||
capacity | 5KVA | ||
Volume (D * W * H) | 660 * 400 * 700 (mm) | ||
grade | High-end industrial products | ||
Circuit mode | IGBT / SPWM pulse width modulation mode | ||
AC input | Phase | Simplex | |
Voltage | 130-280V | ||
frequency | 30-80HZ | ||
AC output (Standard sine wave) | Phase | Phase four-wire | |
Line voltage | 380V±0.5% | ||
Phase current | 7.6A | ||
frequency | 50HZ ± 0.01% | ||
Frequency stability | ≤ ± 0.01HZ | ||
Voltage regulation rate | ≤±0.5% | ||
Load stability | ≤±1% | ||
Waveform distortion | THD≤ ± 3% (resistive load) | ||
Unbalanced | Phase 120 ° ± 2 °; phase difference (3% Rating | ||
Power Factor | 0.85 | ||
effectiveness | ≥85% | ||
Reaction time | (20ms | ||
Adapt to the load | No type restrictions, but the capacitive and inductive load shall be applicable derating | ||
Panel Displays | Frequency, voltage, current, power / power factor. | ||
protective device | Input no-fuse switch; Output no fuse switch; overvoltage; overcurrent; overload; automatically trip over temperature and short circuit protection and alarm | ||
noise | (60dB | ||
Insulation reactance | 500Vdc 20MΩ or more | ||
Voltage insulation | 1800Vac / 5Ma / 1 分钟 | ||
Cooling device | Forced air cooling fan | ||
Chassis Architecture | Three film surface quality, fine orange lines | ||
Electromagnetic Compatibility | Referring GJB151A-97, GJB152A-97 requirements | ||
Use of the environment | Operating temperature | -10~50℃ | |
Relative humidity | 0-90% (non-condensing) | ||
Altitude | 2000 meters | ||
Remark | a. Power according to the modular design, ease of maintenance replacement parts. b. Follow the on ship vibration test standards, strengthening anti-vibration, after the long-distance transport to ensure reliable performance. c. After the parameters debugging, still keep the original settings. d. Communication monitoring optional RS232 / 485 and other communications interfaces. e. according to the voltage, frequency and other parameters can be specially tailored to customer requirements. | ||
