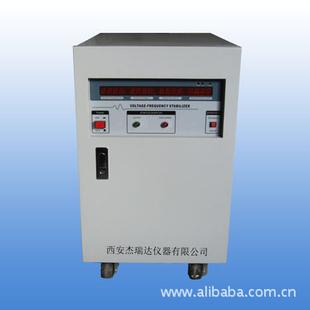

AF series marine shore power supply frequency (100KVA-2000KVA)

bargain

Input voltage: 1 (V)	Waveform distortion: 1 (%)	Frequency regulation of: 1 (%)
Output voltage: 1 (V)	Load regulation: 1 (%)	Circuit mode: SPWM switching
Load Type: Rectifier load	Custom processing:	Efficiency: 1 (%)
Applications: Computer equipment	Type: Regulator power inverter	Model: AF
Output frequency: 1 (Hz)	Brand: ACS	Product Certification: CCC
Control mode: Pulse width modulation type	Input Frequency: 1 (Hz)

Acsoon-AF series marina marine power inverter power supply by a single power capacity 6KVA ~ 1800KVA the core of the important parts supply - inverter unit using the brand company's compliance with Lloyd's Register Marine product certification standards for the general-purpose inverters inverter unit; all PCB circuit board using coating curing process; sine filter, the output transformer vacuum impregnation with the overall high temperature protective insulating paint and spray paint handling, with high levels of insulation and protection; cabinet using spray processing, protection grade IP22, if installed in our production of mobile tanks, the overall protection class IP55, suitable for outdoor and often moving occasion and any overall bad working conditions.

AF series marina marine power inverter power supply by a single power capacity 6KVA ~ 1800KVA the core of the important parts supply - inverter unit using the brand company's general-purpose inverters comply with Lloyd's Register Marine product certification standards for inverter unit; all PCB circuit board using coating curing process; sine filter, the output transformer vacuum impregnation with the overall high temperature protective insulating paint and spray paint handling, with high levels of insulation and protection; cabinet using spray processing, protection reach IP22, if installed in our production of mobile tanks, the overall protection class IP55, suitable for outdoor and often moving occasion and any overall bad working conditions.

AF Series Marine Shore Power Inverter key performance indicators

Model (AP)			AP-300	AP-400	AP-500	AP-600	AP-800	AP-1000	AP-1200	AP-1500	AP-2000
Capacity (KVA)			300	400	500	600	800	1000	1200	1500	2000
AC input	Voltage		Line Voltage 380 ± 10%
	Frequency (HZ)		50Hz ± 5%
	Power Factor		≥0.85 (100% load)
AC output	Voltage		3-phase 3-wire + N, output voltage arbitrarily set (when ordering)
	Regulators rate		Best 1 percent, at least 2.5% (see specifications)
	Voltage crest factor		1.4
	frequency		50HZ; 60HZ; 400HZ output frequency is arbitrarily set (when ordering)
	Frequency stability rate		≤0.1% (0-100% load change)
	Power (KW)		240	320	400	480	640	800	960	1200	1600
	Waveform distortion		(3%
	Overload		1.5In (1min / 10min); start 2.5In (2s / 20s); tripping protection 4In (In: rated output current)
effectiveness			≥85% (100% load)
display		Export	Digital display: current voltage ﹑ ﹑ power ﹑ ﹑ frequency power factor
Features		Basic	Line voltage compensation
		protection	Inputs: Overvoltage undervoltage ﹑ ﹑ ﹑ overcurrent overload ﹑ ﹑ phase short circuit fault alarm, ground,
Dielectric strength			2500V input sine wave output of the shell 1 minute (work class), no flashover
Protection class			IP54 outdoor machine over the whole indoor IP22 above
cooling method			Fan cooling
noise			(65DB (A)
surroundings		temperature	0℃-50℃
		humidity	0-90% (non-condensing)
		altitude	1000m or less
Dimensions (MM)			300010002000			400010002000			480010002200
