add to cart| Input voltage: 1 (V) | Waveform distortion: 1 (%) | Frequency regulation of: 1 (%) |
| Output voltage: 1 (V) | Load regulation: 1 (%) | Circuit mode: SPWM switching |
| Load Type: Rectifier load | Custom processing: | Efficiency: 1 (%) |
| Applications: Electronics Manufacturing | Type: sine wave power inverter | Model: AF400 |
| Output frequency: 1 (Hz) | Brand: ACS | Product Certification: CCC |
| Control mode: Pulse width modulation type | Input Frequency: 1 (Hz) |

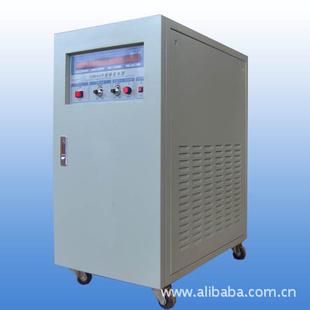

400HZ power supply | 400HZ frequency power supply
Variable frequency power supply application is due to the world grid index is not unified, export electronics manufacturers need to supply analog grid conditions in different countries, power inverter can provide engineers in the design, development, production line testing and quality assurance of product testing, life expectancy, the high pressure / low pressure simulation testing and other applications to provide clean and reliable, low harmonic distortion, high power output sine wave frequency and voltage stable rates; frequency power supply to ensure the normal operation of imported original appliances, equipment; frequency power to meet the avionics and military high frequency equipment needs. Therefore, power inverter has been widely used.
Shandong Jinan Shengxin Electronic Technology Co., Ltd. is a professional business frequency power, 60HZ power, 400HZ frequency power supply, 1000HZ power, 1200HZ power, 1350HZ frequency power, 1500HZ power, 2000HZ power, single-phase variable frequency power supply, three-phase power inverter, power inverter , power modules, switching power supplies and other power supply manufacturers, is set research and development, manufacturing, sales of variable frequency frequency stabilization power supply manufacturer.
Shengxin main products include digital and analog two categories totaling hundreds of standard models of industrial frequency power and capacity from 300VA to 100kVA of 400Hz IF static variable power supply series, 700HZ ~ 1500HZ special performance power supplies. These products have been widely applied to various fields of aerospace, defense, communications, travel, laboratory, quality supervision and inspection, household appliances production.
400HZ power supply | 400HZ frequency power supply
Model (DH) | 1005 | 1010 | 1020 | 1030 | 1050 | 1100 | 1150 | 3120 | 3130 | 3145 | 3160 | |
Output Capacity | 500VA | 1KVA | 2KVA | 3KVA | 5KVA | 10KVA | 15KVA | 20KVA | 30KVA | 45KVA | 60KVA | |
Circuit mode | IGBT pulse width control | |||||||||||
Load Type | Apply any load | |||||||||||
control method | SPWM pulse width modulation mode | |||||||||||
Input voltage | Single-phase: 220V ± 10% AC Three-phase: 380V ± 10% AC3Φ4W | |||||||||||
Input Frequency | 50Hz ± 5% | |||||||||||
The output voltage | Low-grade: 0-150V upscale phase voltage: phase voltage 0-300V (two tranches are continuously adjustable) | |||||||||||
Output frequency | 400Hz fixed frequency or (300HZ-500Hz continuously adjustable) | |||||||||||
Output current | Low | 4.2A | 8.4A | 17A | 25A | 42A | 84A | 126A | 168A | 250A | 375A | 500A |
High gear | 2.1A | 4.2A | 8.5A | 12.5A | 21A | 42A | 63A | 84A | 125A | 188A | 250A | |
Output waveform | Standard pure sine wave | |||||||||||
Load regulation | ≤1% | |||||||||||
Frequency Regulator degree | ≤0.01% | |||||||||||
Accuracy | 0.05% | |||||||||||
Degree phase angle shift | When balance or load ≤1º, 100% unbalanced load ≤2.5º | |||||||||||
Unbalanced | Suitable for unbalanced load phase 120 ° ± 3 ° | |||||||||||
work efficiency | ≥85% | |||||||||||
Waveform distortion | THD≤2% (resistive load test) | |||||||||||
cooling method | Forced air | |||||||||||
Meter Display | The table below shows the four-digit phase voltage, current, frequency, power / power factor, resolution 0.1 | |||||||||||
protective device | Input no-fuse switch; Output no-fuse switch; electronic circuit instant overvoltage; overcurrent; overload; over temperature (over 85 ℃) and short circuit automatically trip protection and alarm device | |||||||||||
working environment | Zhou Wen -6 ~ 40 ℃, relative humidity of 10 to 90% (non-condensing) | |||||||||||
description | Shengxin 400HZ military power specifically for the aviation and military electrical and electronic equipment design and manufacture 400Hz frequency static frequency power supply, can be used for aircraft and airborne equipment, radar, navigation and other military electronic equipment, and other needs 400Hz frequency of the power supply, is the unit of formula variable frequency power generation product. The product voltage and frequency regulation are ± 20% of the adjustment range, also suitable for laboratory or production line, as a debugging test power. | |||||||||||
Features | The adjustable frequency width; high precision; easy to operate | |||||||||||
Applications | Shuttle airborne equipment; radar; navigation and other military electronic equipment; laboratories; production line | |||||||||||
