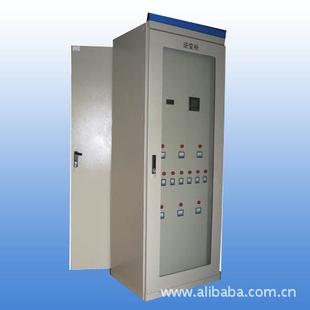

AND48 series of communications power inverter

bargain

Input voltage: 1 (V)	Waveform distortion: 1 (%)	Frequency regulation of: 1 (%)
Output voltage: 1 (V)	Load regulation: 1 (%)	Circuit mode: SPWM switching
Load Type: Mixed loads	Custom processing:	Efficiency: 1 (%)
Applications: Computer equipment	Type: Inverter	Type: AND
Output frequency: 1 (Hz)	Brand: ACS	Product Certification: CCC
Control mode: Pulse width modulation type	Input Frequency: 1 (Hz)

(Introduction)

西安杰瑞达 Instrument Co., Ltd. is a manufacturer with international authority recognized ISO9001 international quality standard management system. Specialized in producing power equipment. Inverter device is a DC electrical energy into uninterrupted, clean AC power The conversion means to provide computers and other electrical equipment can be used continuous AC power, preparedness and unstable mains power. can also prevent distortion of public communication of all kinds, such as the supply voltage drops, surge, spikes and Radio frequency interference.

(Features)

• Fully isolated inverter technology, no noise pure sinusoidal AC output voltage;

• The inverter unit with microprocessor control; SPWM sinusoidal pulse width modulation technique; waveform pure;

• unique dynamic current loop control technology to ensure reliable operation of the inverter;

• overload capacity, can withstand computer load power surge;

• High-power static bypass switch; by the bypass when the overload; switching time is short;

• With input over; undervoltage; output over; undervoltage; over-temperature; short circuit protection;

• The inverter front panel LED display, status at a glance;

• Multiple lightning protection scheme option;

(Main Specifications)

Model (AND48-)		1005	1010	1020	1030	1050	1080	1100
Rated Capacity		500VA	1KVA	2KVA	3KVA	5KVA	8KVA	10KVA
Operation mode		Pure Inverter
DC input	Rated voltage (V)	48VDC
	Voltage range (V)	40 ~ 55 VDC
	Current (A)	10.4	20.8	41.6	62.5	104.2	166.7	208.3
AC bypass input	Input voltage range (VAC)	220±15%
	Enter the maximum current (A)	2.3	4.5	9	13.6	23	36	45
	Switching time (mS)	4ms
AC output	Rated power (KW)	0.4	0.8	1.6	2.4	4	6.4	8
	Rated Current (A)	2.3	4.5	9	13.6	23	36	45
	Power factor (PF)	0.8
	Output voltage accuracy	AC220 V ± 1%
	Waveform	Sine wave
	Output frequency accuracy (Hz)	50HZ ± 0.1%
	Waveform distortion (THD)	≤3%
	Changes in an instant	± 5% (0 ~ 100% load)
	Crest factor (CF)	3: 1
	Inverter efficiency (%)	90 (80% resistive load)				92 (80% resistive load)
Insurance Protect	Output overload protection	150%, maintained 30S
	Output short circuit protection	Shutdown protection, artificial restoration
	DC low voltage protection	Inverter shutdown, automatic recovery
	Over-temperature protection system	85 ℃ shutdown protection, 75 ℃ automatically restored
	Enter the reverse protection	no work
working environment	Noise (1 meter)	≤40db
	Dielectric strength	Input to output 3000VAC, 1 分钟
	Working temperature	-10~45℃
	Relative humidity	20% to 90% non-condensing
	Altitude (m)	≤1000
	cooling method	Forced air
