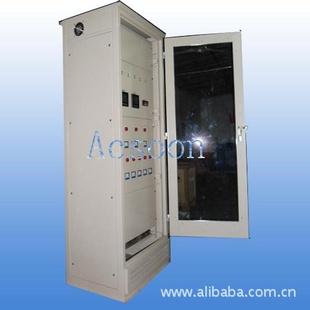

Power inverter with charging function

bargain

Input voltage: 1 (V)	Waveform distortion: 1 (%)	Frequency regulation of: 1 (%)
Output voltage: 1 (V)	Load regulation: 1 (%)	Circuit mode: SPWM switching
Load Type: Rectifier load	Custom processing:	Efficiency: 1 (%)
Applications: Motor	Type: sine wave power inverter	Type: AND
Output frequency: 1 (Hz)	Brand: ACS	Product Certification: CCC
Control mode: Pulse width modulation type	Input Frequency: 1 (Hz)

(1KW, 1.5KW, 2KW, 3KW, 3.5KW, 5KW)

AND2K-122448

AND3K-122448

AND5K-48

l Soft Start

l High efficiency

l automatic restart

l 5 segment speed control

l Short circuit protection

l temperature protection

characteristic

a. Pure sine wave output (waveform distortion rate of less than 2%)

b. Input and output fully isolated

c. efficiency up to 87-90%

d. motor starting capability with inductive load to be 3-4 times more power

e. a thermostatically controlled fan

f. battery protection function. To consider a battery capable of withstanding the maximum current

SPEC SHEET
model	AND2K-12 AND2K-24 AND2K-48	AND3K-12 AND3K-24 AND3K-48		AND5K-48
Continuous output power (W)	2K	3K		5K

Maximum output power (W)	4K	6K		10K
Output Voltage (VAC)	220/230/240/110/120/130
Voltage error (%)	±5
DC input voltage (VDC)	10-16 (12) 20-30 (24) 40-60 (48)
Output waveform	Pure sine wave
Frequency (Hz)	50/60±2%
effectiveness (%)	) 87
No-load current (A)	(2.4 (12V) (1.5 (24V) (1 (48V)
Charging current (A)	6A
AC input range	220/230/240/110/120 / 130VAC 50 / 60HZ
Switching time (mS)	≤20
Load loss	(8W
Temperature protection (℃)	75 ± 5 (machine)
Input low pressure alarm	Have
Input voltage protection	Have
Input voltage protection	Have
Output short circuit protection	Have
DC & AC isolation	Have
Waveform distortion rate	(2%
size L * W * H (Mm)	500200340		500200400	500200450
Weight (Kg)	About 16		19.5	21.5
