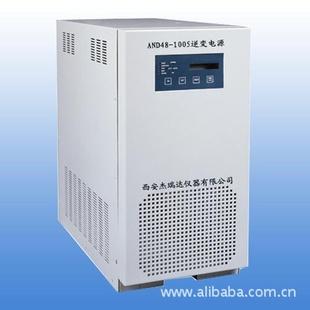

Power Inverter

bargain

Input voltage: 1 (V)	Waveform distortion: 1 (%)	Frequency regulation of: 1 (%)
Output voltage: 1 (V)	Load regulation: 1 (%)	Circuit mode: SPWM switching
Load Type: Mixed loads	Custom processing:	Efficiency: 1 (%)
Applications: IT industry	Type: AC Power Supply	Type: AND
Output frequency: 1 (Hz)	Brand: ACS	Product Certification: CCC
Control mode: Pulse width modulation type	Input Frequency: 1 (Hz)

This series of products is the use of our unique patented technology; the application of high-frequency switching converter power electronics technology; specifically for aviation and military electrical and electronic equipment design and manufacture 400Hz frequency
Updating the unit-type variable frequency power supply; static variable frequency power supply; can be used for aircraft and airborne equipment; radar; navigation and other military electronic equipment; and other needs 400Hz frequency power supply occasions
Products. The product voltage and frequency regulation are ± 20% of the adjustment range, also suitable for laboratory or production line, as a debugging test power also can be customized for a variety of produce 25 ~ 1500Hz
Frequency and voltage of the power supply.

Features:

1; a unique double-loop control mode instantaneous value; high control accuracy; waveform quality; can be adapted to a variety of loads

2; IGBT high frequency static inverter; small; lightweight; low noise; high efficiency; against outside interference small

3; microprocessor control; output voltage adjustable frequency line; operation and fault status at a glance

4; digital LED operation display panel; the use of flexible; allowing you more handy

5; isolation transformer isolated output; safe and reliable; adaptability

6, used alone or mounted 19 'standard cabinet can be

Standard:

(GJB181A-2003 aircraft power characteristics)

(GJB572-88 aircraft ground power supply characteristics and general requirements)

(Q / AK004-2001 static condition variable frequency power supply technology)

Technical Parameters:

Machine Model	AC400-1005	AC400-1010	AC400-1030		AC400-1060		AC400-1100
capacity	500VA	1KVA	3KVA		6KVA		10KVA
Circuit mode	IGBT / SPWM pulse width modulation mode
Output frequency	Ratings 400Hz, ± 20% of the adjustable
Load regulation	≤±1%
Frequency stability	≤±0.01%
Input voltage	220V / 380V ± 10%
Input phase	Single-phase / three-phase four-wire
Waveform distortion	THD≤2%
The output voltage	Rating 36V / 115V / 200V (specify when ordering), ± 20% of the adjustable
Reaction time	≤2mS
The table below shows	Frequency; voltage; current; power or power factor four digital display
Protection	Overvoltage; overcurrent; over-temperature; overload; short circuit protection and automatic alarm
Insulation reactance	500Vdc 20MΩ
Voltage insulation	1800Vac / 5mA / 1 分钟
cooling method	Forced fan cooling
Operating temperature	0℃-45℃
Relative humidity	0-90% (non-condensing)
Altitude	1500m
Dimensions (W * D * H)	450 * 385 * 185mm			350 * 555 * 655mm		400 * 655 * 790mm

Machine Model	AC400-1115	AC400-1200	AC400-1300	AC400-1450		AC400-1600	AC400-11000
capacity	15KVA	20KVA	30KVA	45KVA		60KVA	100KVA
Circuit mode	IGBT / SPWM pulse width modulation mode
Output frequency	Ratings 400Hz, ± 20% of the adjustable
Load regulation	≤±1%
Frequency stability	≤±0.01%
Input voltage	220V / 380V ± 10%
Input phase	Single-phase / three-phase four-wire
Waveform distortion	THD≤2%
The output voltage	Rating 36V / 115V / 200V (specify when ordering), ± 20% of the adjustable
Reaction time	≤2mS
Meter Display	Frequency; voltage; current; power or power factor four digital display
Protection	Overvoltage; overcurrent; over-temperature; overload; short circuit protection and automatic alarm
Insulation reactance	500Vdc 20MΩ
Voltage insulation	1800Vac / 5mA / 1 分钟
cooling method	Forced fan cooling
Working temperature	0℃-45℃
Relative humidity	0-90% (non-condensing)
Altitude	1500m
Dimensions (W * D * H)	450 * 830 * 1000mm				580 * 1230 * 1580mm
