Single-phase frequency power 115V400HZ

bargain

Input voltage: 0 (V)	Waveform distortion: 0 (%)	Frequency regulation: 0 (%)
Output voltage: 0 (V)	Load regulation: 0 (%)	Circuit mode: SPWM switching
Load Type: Mixed loads	Custom processing:	Efficiency: 0 (%)
Applications: Motor	Type: Single-phase inverter power supply	Model: 115V400HZ
Output frequency: 0 (Hz)	Brand: ACSOON	Product Certification: CCC
Control mode: Pulse width modulation type	Input Frequency: 0 (Hz)

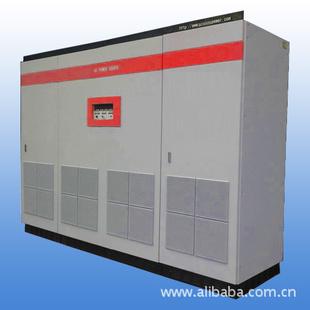

Single-phase frequency power 115V400HZ

Description: 400hz frequency power supply is the use of our unique patented technology, the application of high-frequency switching converter power electronics technology, specifically for aviation and military electrical and electronic equipment design and manufacture 400Hz frequency static frequency power supply, can be used for aircraft and airborne equipment, radar, navigation and other military electronic equipment, and other needs 400Hz frequency of the power supply is variable frequency power supply unit replacement. This product voltage and frequency regulation are ± 20% of the adjustment range, also suitable for laboratory or production line, as a debugging test power also can be customized for the production of 25 ~ 1500Hz various frequency and voltage of the power supply. Features:

1; a unique double-loop control mode instantaneous value; high control accuracy; waveform quality; can be adapted to various load 2; IGBT high frequency static inverter; small; lightweight; low noise; high efficiency; against outside interference small 3 ; microprocessor control; output voltage adjustable frequency line; operation and fault status at a glance 4; digital LED operation display panel; flexible and easy to use; allowing you more handy 5; isolation transformer isolated output; safe and reliable; adaptability 6; use or install 19 'standard cabinet can be individually

Machine Model	AF400-11005	AF400-11010	AF400-11030	AF400-11050	AF400-31100
capacity	500VA	1KVA	3KVA	5KVA	10KVA
Circuit mode	IGBT / SPWM pulse width modulation mode
Output frequency	400Hz / 300 ~ 500Hz
Load regulation	≤±1%
Frequency stability	≤±0.01%
Input voltage	220V / 380V ± 10%
Input phase	Single-phase / three-phase four-wire
Waveform distortion	THD≤2%
The output voltage	0 ~ 150V continuously adjustable
Reaction time	≤2mS
Meter Display	Frequency; voltage; current; power or power factor four digital display
Protection	Overvoltage; overcurrent; over-temperature; overload; short circuit protection and automatic alarm
Insulation reactance	500Vdc20MΩ
Voltage insulation	1800Vac / 5mA / 1 分钟
cooling method	Forced fan cooling
Operating temperature	-28℃-60℃
Relative humidity	0-90% (non-condensing)
Altitude	1500m
Dimensions (W * D * H) mm	410440140	420450180	450440222	560350670	660400800

Table II

Machine Model	AF400-31150	AF400-31200	AF400-31300	AF400-31450	AF400-31600	AF400-311000
capacity	15KVA	20KVA	30KVA	45KVA	60KVA	100KVA
Circuit mode	IGBT / SPWM pulse width modulation mode
Output frequency	400Hz / 300 ~ 500Hz
Load regulation	≤±1%
Frequency stability	≤±0.01%
Input voltage	220V / 380V ± 10%
Input phase	Single-phase / three-phase four-wire
Waveform distortion	THD≤2%
The output voltage	0 ~ 150V continuously adjustable
Reaction time	≤2mS
Meter Display	Frequency; voltage; current; power or power factor four digital display
Protection	Overvoltage; overcurrent; over-temperature; overload; short circuit protection and automatic alarm
Insulation reactance	500Vdc20MΩ
Voltage insulation	1800Vac / 5mA / 1 分钟
cooling method	Forced fan cooling
Working temperature	-28℃-60℃
Relative humidity	0-90% (non-condensing)
Altitude	1500m
Dimensions (W * D * H) mm	8304501100			12006001485
