Precision Power Supply - Power supply stable

bargain

Input voltage: 0 (V)	Waveform distortion: 0 (%)	Frequency regulation: 0 (%)
Output voltage: 0 (V)	Load regulation: 0 (%)	Circuit mode: SPWM switching
Load Type: Mixed loads	Custom processing:	Efficiency: 0 (%)
Applications: IT industry	Type: Regulator power inverter	Model: AF50
Output frequency: 0 (Hz)	Brand: ACSOON	Product Certification: CCC
Control mode: Pulse width modulation type	Input Frequency: 0 (Hz)

Precision Power Supply - Power supply stable

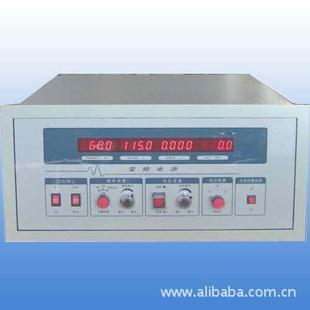

AF50 multifunction programmable variable frequency AC power is AF60 based on the design and development of a high-quality AC power, with good reliability, utility functions and so on. The power supply to provide clean power for all types of load and simulate grid Change on test equipment for laboratories, electronic companies, such as precision and safety control applications.

Frequency power supply equipment technical parameters:

1, feature-rich measure: can measure voltage; fundamental frequency and other parameters;; current; power; power factor can also measure voltage / current peak; voltage / current peak ratio; a voltage / current total harmonic distortion parameters

2, automatic test or manual test-optional

3; voltage remote sampling; start; end phase 0o ~ 360o can be set

4; RS232 / 485 communication; intelligent fan control

5; buzzer; LCD backlight can be set

6; slim design; only 2U chassis

Frequency Power Specifications:

Output Capacity

1KVA

Voltmeter Range

75V / 150V / 300V

Voltage stability

≤0.2%

Ammeter Range

0.5A / 2A / 10A

Voltage, ammeter basic accuracy

± (0.4% of reading + 0.1% of range +1 words)

Basic accuracy power meter

± (0.4% of reading + (0.1 / PF)% range +1 words)

Output frequency

40.0Hz ~ 500.0Hz

Frequency stability

≤ 0.03%

Transient response rate

( 400μs

Total harmonic content

≤0.5% (40Hz ~ 100Hz); ≤1% (101Hz ~ 500Hz)

Power Efficiency

80%
