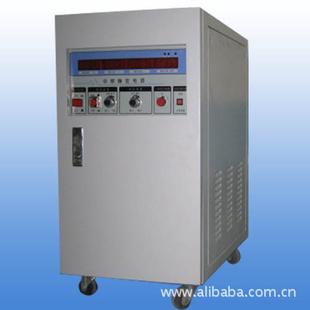

Test Frequency Power
bargain
add to cart| Input voltage: 0 (V) | Waveform distortion: 0 (%) | Frequency regulation: 0 (%) |
| Output voltage: 0 (V) | Load regulation: 0 (%) | Circuit mode: SPWM switching |
| Load Type: Mixed loads | Custom processing: | Efficiency: 0 (%) |
| Applications: Computer equipment | Type: sine wave power inverter | Model: AF60 |
| Output frequency: 0 (Hz) | Brand: ACSOON | Product Certification: CCC |
| Control mode: Pulse width modulation type | Input Frequency: 0 (Hz) |
Test Frequency Power
A test, can not be separated power supply, power instability, unstable work on the object to be measured, even with the most sophisticated instruments are difficult to obtain stable, reproducible results. With the grid voltage via the regulator as a test power supply, due to poor stability , volatile, affecting the measurement accuracy and test efficiency; at the same time, with the export of electrical products continued to increase, the test must simulate grid conditions abroad (60Hz, etc.), so sophisticated testing frequency power supply has become an essential test electrical and electronic product testing.
Frequency Power Model AF60- | 11000.5 | 11001 | 11002 | 11003 | 11005 | 31010 | 31015 | 31020 | |||
Output Capacity | 500W | 1KVA | 2KVA | 3KVA | 5KVA | 10KVA | 15KVA | 20KVA | |||
Circuit mode | IGBT / PWM pulse width modulation | ||||||||||
AC input | Voltage | 220 ± 10% or 380 ± 10% | |||||||||
frequency | 50Hz, 60Hz | ||||||||||
AC output | Phase | Simplex | |||||||||
Voltage | Low | Phase voltage 0V ~ 150V continuously adjustable | |||||||||
High-grade | Phase voltage 0V ~ 300V continuously adjustable | ||||||||||
frequency | 40Hz ~ 70Hz; 50Hz; 60Hz; 100Hz; 200Hz | ||||||||||
Electric current | Low | 4.2A | 8.4 | 16.8 | 25 | 42 | 84 | 126 | 168 | ||
High-grade | 2.1A | 4.2 | 8.4 | 12 | 21 | 42 | 63 | 84 | |||
Indication / Resolution | Digital frequency meter | 4-digit resolution: 0.1Hz | |||||||||
Digital voltmeter | 4 digits Resolution: 0.1V | ||||||||||
Digital ammeter | 4-digit resolution: 4A0.01A4A than 0.01A | ||||||||||
Frequency Power Model AF60- | 13003 | 13006 | 13010 | 33015 | 33020 | 33030 | 33045 | 33060 | |||
Output Capacity | 3KVA | 6KVA | 10KVA | 15KVA | 20KVA | 30KVA | 45KVA | 60KVA | |||
Circuit mode | IGBT / PWM pulse width modulation | ||||||||||
AC input | Single-phase 380v / 50Hz; 60Hz three-phase 380v / 50Hz; 60Hz | ||||||||||
AC output | Phase | Three-phase (phase difference 120 ° ± 2 °) | |||||||||
Voltage | Low | Phase voltage 0V ~ 150V (line voltage is 0V ~ 260V) | |||||||||
High-grade | Phase voltage 0V ~ 300V (line voltage is 0V ~ 52V) | ||||||||||
frequency | 40Hz ~ 70Hz; 50Hz; 60Hz | ||||||||||
Electric current | Low | 8.4A | 16.8A | 28A | 42A | 58A | 84A | 126A | 168A | ||
High-grade | 4.2A | 8.4A | 14A | 21A | 29A | 42A | 63A | 84A | |||
Indication / Resolution | Digital frequency meter | 4-digit resolution: 0.1Hz | |||||||||
Digital voltmeter | 4 digits Resolution: 0.1V | ||||||||||
Digital ammeter | 4-digit resolution: 4A0.01A4A than 0.01A | ||||||||||
Digital Power Meter | 4-digit resolution: 200W the following: 0.1W200W above: 1W | ||||||||||
Digital Factor Meter | 4-digit resolution: 0.001 | ||||||||||
