115V / 400HZ IF static variable power supply

bargain

Input voltage: 1 (V)	Waveform distortion: 1 (%)	Frequency regulation of: 1 (%)
Output voltage: 1 (V)	Load regulation: 1 (%)	Circuit mode: SPWM switching
Load Type: Mixed loads	Custom processing:	Efficiency: 1 (%)
Applications: appliance manufacturing	Type: Single-phase inverter power supply	Model: AF50
Output frequency: 1 (Hz)	Brand: ACS	Product Certification: CCC
Control mode: Pulse width modulation type	Input Frequency: 1 (Hz)

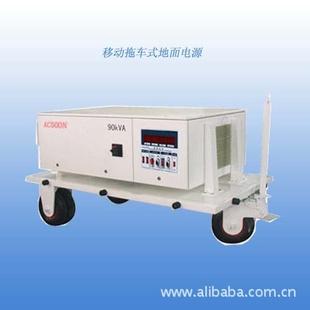

115V / 400HZ IF static variable power supply is our own research and development, design and manufacture of mechanical and electrical products with the contemporary world advanced level. It is an external output rated frequency 400Hz, rated voltage of 115V three-phase AC frequency power supply, both as having an AC power supply system of various civilian and military aircraft ground support power, but also can be used as aircraft manufacturing, maintenance plants, test stations, the Institute of Experimental power can be widely used in the hangar, apron, boarding bridges, e-shop, laboratory AC mains supply point of use, with good waveform quality, small size, light weight, low noise, no pollution, low operation cost can be provided upon request fixed, hanging bridges and trailer unit .

Widely used in: Aircraft Helicopter / airplane manufacturer / aerospace equipment manufacturer / aircraft repair plant / aircraft repair station / apron tower / Instrumentation & Control Center / naval surveillance systems for power / Army detection systems for power / air detection system dedicated power / military equipment for power / Radar dedicated power supply / vessels dedicated power / defense / military R & D units / turbine engine manufacturer.

115V / 400HZ IF static variable power supply technology parameters:

model			AF400-33115
capacity			115KVA
Volume (D * W * H)			1670 * 750 * 1650 (mm)
grade			High-end industrial products
Circuit mode			IGBT / SPWM pulse width modulation mode
AC input		Phase	Three Phase
		Voltage	380V±10%
		frequency	50HZ / 60HZ ± 5%
AC output (Standard sine wave)		Phase	Phase four-wire
		Voltage	Rating 36V / 115V / 200V (specify when ordering), ± 20% of the adjustable
		frequency	400HZ / 300 ~ 500 HZ (continuously adjustable)
Frequency stability			≤ ± 0.01HZ
Voltage regulation rate			≤±0.5%
Load stability			≤±1%
Waveform distortion			THD≤ ± 3% (resistive load)
Unbalanced			Phase 120 ° ± 2 °; phase difference (3% Rating
Power Factor			0.85
effectiveness			≥85%
Reaction time			(20ms
Adapt to the load			No type restrictions, but the capacitive and inductive load shall be applicable derating
Panel Displays			Frequency, voltage, current, power / power factor.
protective device			Input no-fuse switch; Output no fuse switch; overvoltage; overcurrent; overload; automatically trip over temperature and short circuit protection and alarm
noise			(60dB
Insulation reactance			500Vdc 20MΩ or more
Voltage insulation			1800Vac / 5Ma / 1 分钟
Cooling device			Forced air cooling fan
Chassis Architecture			Three film surface quality, fine orange lines
Electromagnetic Compatibility			Referring GJB151A-97, GJB152A-97 requirements
Use of the environment	Operating temperature		-10~50℃
	Relative humidity		0-90% (non-condensing)
	Altitude		2000 meters
Remark	a. Power according to the modular design, ease of maintenance replacement parts. b. Follow the on ship vibration test standards, strengthening anti-vibration, after the long-distance transport to ensure reliable performance. c. After the parameters debugging, still keep the original settings. d. Communication monitoring optional RS232 / 485 and other communications interfaces. e. according to the voltage, frequency and other parameters can be specially tailored to customer requirements.
