Power inverter power
bargain
add to cart| Input voltage: 0 (V) | Waveform distortion: 0 (%) | Frequency regulation: 0 (%) |
| Output voltage: 0 (V) | Load regulation: 0 (%) | Circuit mode: SPWM switching |
| Load Type: Mixed loads | Custom processing: | Efficiency: 0 (%) |
| Applications: appliance manufacturing | Type: variable voltage variable frequency power supply | Model: AF60 |
| Output frequency: 0 (Hz) | Brand: ACSOON | Product Certification: CCC |
| Control mode: Pulse width modulation type | Input Frequency: 0 (Hz) |

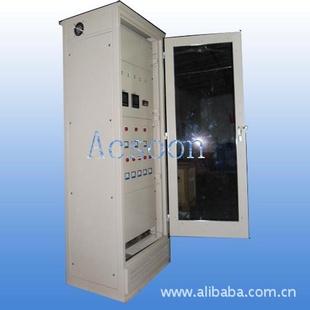

Power inverter power
AF series (power) frequency power supply specifications and technical parameters
model | AF60-330075 | AF60-330090 | AF60-330110 | AF60-330132 | AF60-330160 | AF60-330200 | AF60-330315 | AF60-330400 | AF60-330630 | AF60-330800 | ||
* Rated capacity KVA | 93 | 112 | 131 | 168 | 202 | 443 | 375 | 468 | 656 | 831 | ||
enter | Input voltage | Three-phase, 380V-480V; voltage fluctuation allowed range: 323V-528V | ||||||||||
Input Frequency | 50Hz / 60Hz ± 5% | |||||||||||
Power Factor | ≥0.95 | |||||||||||
Export | The output voltage | Three-phase + N output voltage arbitrarily set (when ordering) | ||||||||||
Output frequency | 20-400Hz Optional | |||||||||||
* Rated current | 142A | 171A | 200A | 256A | 308A | 674A | 570A | 712A | 997A | 1263A | ||
Overload | 150% 1 minutes / 10 minutes; 250% 2 seconds / 20 seconds; 400% protection | |||||||||||
Waveform (voltage) | Sinusoidal waveform distortion (THD) (3% | |||||||||||
Frequency stability | ≤0.01% | |||||||||||
Load regulation | Load 0-100% of the output voltage variation ≤3% | |||||||||||
effectiveness | ≥90% | |||||||||||
control method | IGBT / SPWM sinusoidal pulse width modulation (high carrier) | |||||||||||
Display Function | LED digital display voltage; current; frequency; fault information | |||||||||||
Protection | Overcurrent; overvoltage; under voltage; short circuit; phase protection functions | |||||||||||
Use of the environment | Temperature (℃) -10- +50 relative humidity of 90% or less | |||||||||||
Dimensions (mm) WxDxH | 2000*650*2200 | When determining the order | ||||||||||
Reference weight (Kg) | 380 | 560 | 850 | 110 | 1480 | |||||||
* Note: The rated capacity and rated current is the power inverter output line voltage rating of 380V when.
Features:
1, to provide world standard power supply, stable pure sine wave can be a long time on the production line or equipment to provide different standards of supply and simulation tests of various electrical products exports.
2, the price is excellent, especially in terms of the price of high-power variable frequency power supply for the general 1/5.
3; output voltage; frequency analog signal (4-20mA or 0-5V) control, flexible operation.
4, high-frequency SPWM designed to push universal converter for inverter power, small size, low noise.
5, the unique sine filter technology, good output voltage waveform quality, and can adapt to a variety of loads.
6, up to 85% efficiency, load power factor ± 0.5-1.0 can be.
7, overload, instantaneous current can withstand 300% of rated current; over-voltage, over current, overload, over-temperature protection and multiple alarms.
8, between 20 ~ 400Hz output frequency can be arbitrarily selected.
9; low waveform distortion; THD (3%; input / output is completely isolated, less interference, safe and reliable.
10, LED digital display voltage, current, frequency, fault information.
