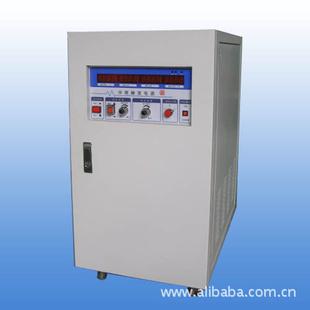

LED lighting testing ballast special variable frequency power supply 500W

bargain

Input voltage: 0 (v)	Waveform distortion: 0 (%)	Frequency voltage: 0 (%)
Output voltage: 0 (v)	Load voltage: 0 (%)	Circuit mode: SPWM switch
Load type: mixed load	Customized processing: Yes	Efficiency: 0 (%)
Scope of application: IT industry	Type: adjustable voltage variable frequency power supply	Model: 500W
Output frequency: 0 (Hz)	Brand: ACSOON	Product certification: CCC
Control mode: pulse-width modulation	Input frequency: 0 (Hz)

LED lighting testing ballast special variable frequency power supply 500W

The first transistor converter experts; Interference can not be replaced mainly used tape recorders; Stereo; Switching power supply power supply SPS EMI/EMC experiment

Application areas

Transformation frequency of tests you want power, aerospace industry, defence forces, stabilizer, motor switching power supply products.

LED lighting testing; Ballast test; Computer peripherals; Computer monitors; External appliances; OA product testing

Inverter specifications (single-phase series)

Input voltage: AC110V (selection) or 220V ± 10%
Input frequency: 50Hz or 60Hz
Output voltage: 0-150V or 0-300V two 10 minute adjustable
Output frequency: 50/60/400Hz, VAR47-63Hz
Load regulator rate: ≤±0.5%

Efficiency: ) 85%
Harmonic distortion: ≤0.3-0.5%
Frequency regulator rate: ±0.01Hz
Protection: overload, short circuit protection
Warning devices: the Singing Bee and LEDs

Models	AF60-500VA	AF60-11001	AF60-11002	AF60-11003	AF60-11005	AF60-11010
Capacity	500VA	1KVA	2 KVA	3 KVA	5 KVA	10 KVA
Input voltage	1Ø2W110V or 220V		1Ø2W200V ± 10%
Output voltage	Low 0-150V, high 0-300V
Output current	4.5/2.25A	8.4/4.2A	16.8/8.4A	25/12.5A	42/21A	84/42A
Total wave distortion	≤0.3-0.5%
Dimensions (W.H.D/mm)	430178460	430240550	430460550		480940600	4801500600
Weight (KGS)	45	60	85	150	200	300

※ Other special specifications
※The specifications are subject to change without prior notice, picture for advertising purpose only. actual food may differ in appearance.
