Machine travel load power inverter

bargain

Input voltage: 0 (V)	Waveform distortion: 0 (%)	Frequency regulation: 0 (%)
Output voltage: 0 (V)	Load regulation: 0 (%)	Circuit mode: SPWM switching
Load type: inductive load	Custom processing:	Efficiency: 0 (%)
Applications: Computer equipment	Type: Single-phase inverter power supply	Model: AND110
Output frequency: 0 (Hz)	Brand: ACSOON	Product Certification: CCC
Control mode: Pulse width modulation type	Input Frequency: 0 (Hz)

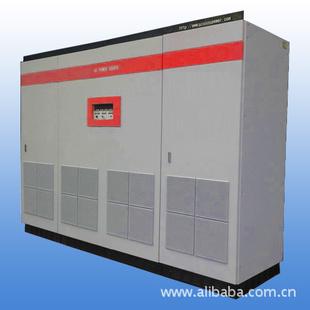

Machine travel load power inverter

(Introduction)

Locomotive for sine wave inverter designed specifically for mobile occasions, the machine travel direct current into alternating current needs, can be widely used in AC-powered locomotive microwave ovens, rice cookers, air conditioners, refrigerators and other equipment. Skytrain auxiliary power supply, ships, ships, various vehicle AC power supply. imported using IGBT power devices, digital circuit, reliability, on-line operation, the DC power converters, voltage regulators, isolation, output AC220V / 50Hz pure sine wave power supply, uninterrupted power supply to the load maintain normal operation.

(Features)

1 wide input voltage range, high precision voltage regulator, strong environmental adaptability.

2, input and output complete electrical isolation, EMC index is high.

3, microprocessor controlled SPWM pulse width modulation technology, pure sine wave output.

4, unique dynamic current loop control technology to ensure reliable operation of the inverter.

5, using IGBT power devices, overload capacity, high overall efficiency.

6, the protection function, long life.

7; human interface display; easy to operate

8; circuit compact; high efficiency; anti-vibration

(Technical Specifications)

Model (AND110-)		1010	1020	1030	1050	1100	1150	1200	1300
Direct-current enter	Rated Capacity	1KVA	2KVA	3KVA	5KVA	10KVA	15KVA	20KVA	30KVA
	Rated input voltage (VDC)	110
	Input voltage range (VDC)	90~150
	Current (A)	9	18	27.3	45.5	91	136.4	182	273
communicate with Export	Rated voltage (VAC)	220V
	Rated phase current (A)	4.5	9	13.6	22.7	45.5	68.2	91	136.4
	Rated frequency (Hz)	50Hz
	Overload	120% 1 minute; 150% for 10 seconds; 200% 1 second
	Voltage stability accuracy (VAC)	220±1%
	Adapt to the load	No type restrictions; available with completely unbalanced load; but the capacitive and inductive load shall be applicable derating
	Frequency stability and accuracy (Hz)	50±0.04
	Waveform distortion (THD)	3% (linear load)
	Dynamic response (0-100%)	≤20ms
	Power factor (PF)	0.8
	Inverter efficiency	92%
	Crest factor (CF)	3: 1
system	Continuous running time	Continuous operation
	Noise (dB1 meters)	≤50
	Ambient temperature	-10~+50℃
	Altitude	≤4000 meters (altitude higher than 1000 m with derating)
	Communication Interface	RS232; RS485; SNMP card; dry node (optional)

The above data for the reference data, subject to change without notice.
