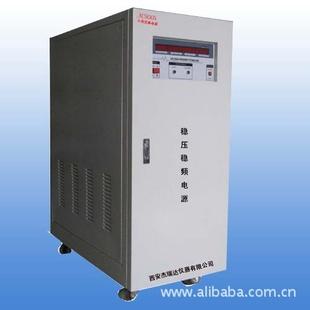

AF50-500VA AC variable frequency power supply

AF50-500VA AC variable frequency power supply

bargain

add to cart
Input voltage: 1 (V) Waveform distortion: 1 (%) Frequency regulation of: 1 (%)
Output voltage: 1 (V) Load regulation: 1 (%) Circuit mode: SPWM switching
Load Type: Mixed loads Custom processing: Efficiency: 1 (%)
Applications: IT industry Type: variable voltage variable frequency power supply Model: AF50
Output frequency: 1 (Hz) Brand: ACS Product Certification: CCC
Control mode: Pulse width modulation type Input Frequency: 1 (Hz)

Product Description:

AF50 AC variable frequency power supply, design synthesis of (SJ / T 10691), (GB 6587), (GB 7260) technical conditions to isolate the transformer output to increase machine stability, strong load adaptability, the output waveform quality Good, simple operation, small size, light weight and other characteristics, the power supply also has a short circuit, overcurrent, overvoltage, overheating protection function to ensure reliable operation of the power supply. The power supply of the meter high accuracy, good stability, to achieve the integration of the source table, with communication interfaces.

Technical characteristics:

1. Output Capacity: 500VA;

2. Output Voltage: 0V ~ 150V; 0V ~ 300V (1Φ),

3. Voltage stability: ≤0.2%;

4. Voltage, ammeter basic accuracy: ± (0.4% of reading + 0.1% of range +1 words)

5. Power Meter Basic accuracy: ± [0.4% (/ span) (span style = 'font-family: songti;') dushu (/ span) (span style = 'font-family: Times New Roman;') + ( 0.1 / PF)% (/ span) (span style = 'font-family: songti;') liangcheng (/ span) (span style = 'font-family: Times New Roman;') + 1 (/ span) (span style = 'font-family: songti;') gezi (/ span) (span style = 'font-family: Times New Roman;')]

6. Maximum output current: 110V: 4.6A; 220V: 2.3A;.

7. Output frequency: 45-65 / 50/60 / (2F / 4F / 400Hz) (optional);

8. Frequency stability: ≤0.03%;

9. The total harmonic content: ≤2%;

10. Power efficiency: 80%;

11. The self-protection function: output short circuit, overcurrent, overload, power devices inside overheat protection circuit will automatically cut off the output, sound and light alarm.
