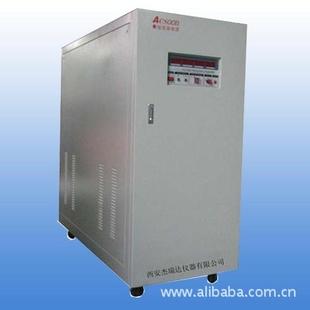

300HZ ~ 800HZ frequency power broadband

bargain

Input voltage: 0 (V)	Waveform distortion: 0 (%)	Frequency regulation: 0 (%)
Output voltage: 0 (V)	Load regulation: 0 (%)	Circuit mode: SPWM switching
Load Type: Mixed loads	Custom processing:	Efficiency: 0 (%)
Applications: Motor	Type: variable voltage variable frequency power supply	Model: 300HZ ~ 800HZ
Output frequency: 0 (Hz)	Brand: ACSOON	Control mode: Pulse width modulation type
Input Frequency: 0 (Hz)

300HZ ~ 800HZ frequency power broadband

Product Introduction

Output 300 ~ 800hz wide frequency range IF AF Series Air power is one of the new products of our company in 2007 delivered to users, and is the first to develop and produce a wide variable frequency power supply companies, and mass production. SWF series IF broadband power supply is designed for large aircraft and airborne equipment design and manufacture of variable frequency power supply; product specifications cover all 400Hz frequency power supply power level, fully meet application requirements across midrange different occasions, different experimental conditions characterized by maximum power can be achieved. 300 ~ 800hz continuous output, according to the needs of electrical equipment, enabling user programming mode by setting the output power.

Features

1. Output frequency 300Hz ~ 800Hz wide range of adjustable frequency step value 0.1 Hz.

2. The output voltage range from 0V ~ 240.0V, resolution up to 0.1V voltage regulator

3. Chinese large-screen LCD; simultaneously display more information; operation more convenient

4. You can edit and store 10 frequency / voltage change programs, each segment can be set to change 10 parameters to control the power output

5. With remote control interface, which can meet the needs of remote monitoring site

6. Other technical indicators according to 400Hz frequency power supply design parameters

7. 400Hz frequency power supply with all the features

Implementation of standards

GJB181A-2003 aircraft powered feature

GJB572 aircraft ground power supply characteristics and general requirements

MH / T6018 ground static power

MIL-STD-704E AIRCRAFT ELECTRIC POWER CHARACTERISTICS

ISO6858 aircraft ground support power - General requirements

DFS400 Air Power features

Specifications and technical parameters

capacity		1.5kVA ~ 3kVA	6kVA ~ 15kVA	20kVA ~ 180kVA
enter	Phase	Simplex	Three-phase three-wire
	Rated voltage	220V	380V
	Voltage Range	198V ~ 242V	323V ~ 437V
	frequency	50Hz ± 5%
	Power Factor	≥0.8		≥0.9
Export	Phase	Phase four-wire
	Rated voltage	115V / 200V
	Voltage setting range	92V ~ 150V
	Regulation accuracy	≤ ± 1% FS (Note: FS meaning of full scale)
	Voltage adjustment resolution	0.1V	1V
	Voltage modulation	(2.5V (rms)
	Voltage unbalance	1V
	Rated frequency	400Hz
	Frequency setting range	300Hz ~ 800Hz
	Precision frequency stabilization	± 0.01% FS
	Frequency adjustment resolution	0.1Hz
	Dynamic characteristic	Overshoot and recovery time to meet the requirements GJB572
	AC distortion factor	Sine wave, THD (2% (linear load test)
	Voltage crest factor	1.414±0.05
	Phase	1/3 unbalanced load 120 ° ± 2 ° completely unbalanced load 120 ° ± 3 °	1/3 unbalanced load 120 ° ± 1.5 ° totally unbalanced load 120 ° ± 3 °
	Power Factor	0.8
	Adapt to the load	No type restrictions; but the motor and rectifier load derating required; specific solutions given by the supplier
	Overload	125% of the current, 5s	200% of the current 1min; 150% Current 10min; 125% Current 30min
	Source regulation	± 0.2% FS
	Load Regulation	± 1% FS
display	Operation Display	Button operation, LCD
	Voltage display accuracy	± 1% FS
	Current display accuracy	± 2% FS
	Frequency display accuracy	± 0.1% FS
protection	category	Input over; undervoltage; output overvoltage; overcurrent; phase; internal overheating	Input over; undervoltage; phase; output overvoltage; overload; overheating
reliability	MTBF	1.0*105h
	MTTR	0.5h
Complex characteristic	effectiveness	) 80%	) 85%	) 90%
	noise	(55dB	(60dB	(65dB
	Inlet and outlet	Back into the outlet		Front bottom inlet and outlet
	cooling method	Air Cooled
	Out of the wind	The front air inlet, back out of the wind		Bottom and sides of the inlet, the top wind
	Communication Interface	RS-232 or RS-485 optional
	Protection class	IP20
surroundings	Operating temperature (storage temperature)	3: -5℃~40℃ (-15℃~50℃) ; 2: -25℃~50℃ (-40℃~60℃) ; 1: -40℃~55℃ (-55℃~70℃)
	humidity	≤90%
	Altitude	≤2000m
