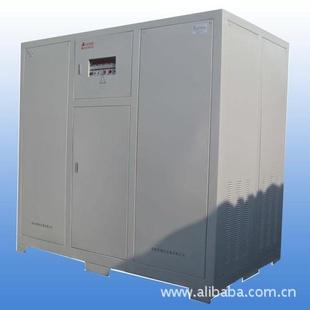

WYK-N series high frequency pre-stabilized linear power supply

WYK-N series high frequency pre-stabilized linear power supply

bargain

add to cart
Input voltage: 0 (V) Waveform distortion: 0 (%) Frequency regulation: 0 (%)
Output voltage: 0 (V) Load regulation: 0 (%) Circuit mode: SPWM switching
Load Type: Mixed loads Custom processing: Efficiency: 0 (%)
Applications: Laboratory Type: sine wave power inverter Model: WYK-N
Output frequency: 0 (Hz) Brand: ACSOON Product Certification: CCC
Control mode: Pulse width modulation type Input Frequency: 0 (Hz)

WYK-N series high frequency pre-stabilized linear power supply

WYK-N series high frequency pre-stabilized linear regulated power supply Description:

The power supply is the main regulator adjustment method using a linear series. To ensure that the main components of the linear regulator power regulator high reliability, the front end of the application of advanced high frequency PWM modulation and isolation combined pre-stabilization technology to ensure the output voltage 0 - Under rated continuous adjustment of status, voltage drop regulator controls around 3V so, to improve machine reliability, while also improving the overall efficiency.

Since the series to abandon the traditional frequency transformer plus SCR phase control technology, the use of advanced high-frequency stability and linear regulator regulating pre-combination regulator technology, machine while maintaining the traditional linear regulator power regulator high precision, low ripple voltage, output voltage and current can be set from zero advantage, another machine switching power supply high efficiency, small size, light weight, wide input voltage range, strong adaptability to the grid environment and other advantages.

The use of advanced parallel technology, the machine maximum output power up to 50KW, the maximum output voltage 1000V, maximum design output currents up to 1000A or more. With RS485 / RS232 communication interface, which enables remote voltage, current regulation and monitoring.

The power supply also has a three-phase single-phase power supply input flexible protection function, high reliability, long continuous work and other characteristics can be widely used in laboratory and mining enterprises, universities, research institutes and electrical products, motor testing, commissioning, aging, post and telecommunications, communications and other ancillary products.

WYK-N high-frequency pre-stabilized linear regulated power supply main technical parameters:

Input voltage

220V ± 10% or 380V ± 10%; 50 ± 5Hz.

The output voltage

0 - Rating continuously adjustable

RS485 interface for remote monitoring (optional)

Output current

0 - Rating continuous preset

Source Effect

≤1*10-3

Load Effect

≤1*10-3

Output ripple

≤5mV (rms current of 200A or less), ≤10mV (rms 500A or less)

Display Accuracy

. Three semi LED digital tube voltage accuracy discrepancy ≤0 5%; current accuracy error ≤1% higher precision please External table test

Overvoltage Protection

Continuous set by panel

Overcurrent protection

0 - Rating continuous set

Overall efficiency

≥90%

Ambient temperature

-10℃-40℃

Relative humidity

≤85%

WYK-N high-frequency pre-stabilized linear power supply specifications models (special specifications can be customized):

specification

model

The output voltage

Output current

Dimensions (mm)

Length (depth) * width * height

NW (KG)

WYK-3030N

0-30V

0-30A

400*430*150

15

WYK-3060N

0-30V

0-60A

450*430*200

25

WYK-30100N

0-30V

0-100A

550*240*420

40

WYK-30200N

0-30V

0-200A

860*340*680

75

WYK-30300N

0-30V

0-300A

900*340*680

100

WYK-30500N

0-30V

0-500A

600*1000*1800

180

WYK-5020N

0-50V

0-20A

400*430*150

13

WYK-5030N

0-50V

0-30A

450*430*200

22

WYK-5050N

0-50V

0-50A

550*240*420

35

WYK-50100N

0-50V

0-100A

600*340*680

72

WYK-50200N

0-50V

0-200A

900*340*680

100

WYK-50300N

0-50V

0-300A

600*1000*1800

180

WYK-10010N

0-100V

0-10A

400*430*150

10

WYK-10020N

0-100V

0-20A

450*430*200

22

WYK-10050N

0-100V

0-50A

700*280*620

75

WYK-10030N

0-100V

0-30A

550*240*420

35

WYK-3003N

0-300V

0-3A

400*430*150

8

WYK-3005N

0-300V

0-5A

450*430*180

13

WYK-30010N

0-300V

0-10A

550*240*420

20

WYK-30020N

0-300V

0-20A

600*300*800

45

WYK-30030N

0-300V

0-30A

700*350*800

80

The above data for the reference data, subject to change without notice.
