(Introduction)

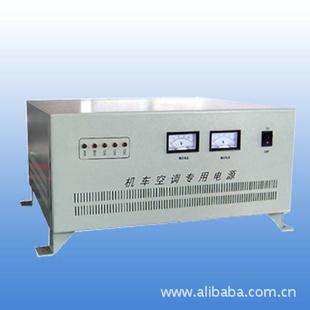

西安杰瑞达 Instrument Co., Ltd. is a manufacturer with international authority recognized ISO9001 international quality standard management system. Specialized in producing power equipment. Inverter device is a DC electrical energy into uninterrupted, clean AC power The conversion means to provide computers and other electrical equipment can be used continuous AC power, preparedness and unstable mains power. can also prevent distortion of public communication of all kinds, such as the supply voltage drops, surge, spikes and Radio frequency interference.

(Features)

• Fully isolated inverter technology, no noise pure sinusoidal AC output voltage;

• The inverter unit with microprocessor control; SPWM sinusoidal pulse width modulation technique; waveform pure;

• unique dynamic current loop control technology to ensure reliable operation of the inverter;

• overload capacity, can withstand computer load power surge;

• High-power static bypass switch; by the bypass when the overload; switching time is short;

• With input over; undervoltage; output over; undervoltage; over-temperature; short circuit protection;

• The inverter front panel LED display, status at a glance;

• Multiple lightning protection scheme option;

(working principle)

Communication dedicated inverter system working block diagram: As shown in Figure 1

Figure 1 Communication dedicated inverter system architecture block diagram

A. inverter system operates in various parts of the bypass state circuit works: After entering through mains EMI filter to filter out noise interference sent mains end, after sending the static switch via the output EMI filter to remove After the interference to the user load terminals, providing power for the user load. machine output at this time is just after filtering without voltage, frequency stabilization process in the ordinary mains.

Figure 2 inverter system working methods of operation of the various parts of the circuit to bypass state

B. inverter system operates in various parts of the circuit works when the DC power supply normal state, when the utility power fails, the DC voltage is supplied to the inverter input side, in the main control circuit driving the inverter DC power into voltage, frequency stability, without interference pure sine wave output to the static switch, the static switch of this high-quality power to the output after EMI filters, EMI filters out interference after the load to the end user, to provide users with high-quality power supply.

Figure 3 inverter system working methods of operation of the various parts of the circuit to the battery when the normal power supply status

(Main Specifications)
