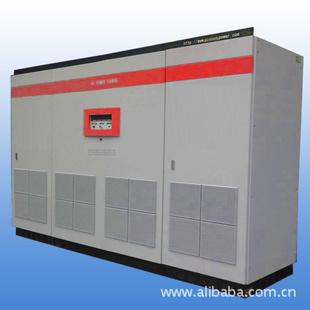

AF50-11001 frequency power supply

bargain

Input voltage: 0 (V)	Waveform distortion: 0 (%)	Frequency regulation: 0 (%)
Output voltage: 0 (V)	Load regulation: 0 (%)	Circuit mode: SPWM switching
Load type: resistive load	Custom processing:	Efficiency: 0 (%)
Applications: Electronics Manufacturing	Type: variable voltage variable frequency power supply	Model: AF50-11001
Output frequency: 0 (Hz)	Brand: ACSOON	Product Certification: CCC
Control mode: Pulse width modulation type	Input Frequency: 0 (Hz)

AF50-11001 frequency power supply

Product Description:

AF50-11001 AC variable frequency power supply, design synthesis of (SJ / T 10691), (GB 6587), (GB 7260) technical conditions to isolate the transformer output to increase machine stability, strong load adaptability, the output waveform quality, easy operation, small size, light weight and other characteristics, the power supply also has a short circuit, overcurrent, overvoltage, overheating protection function to ensure reliable operation of the power supply. The power supply of the meter high measurement accuracy, stability Well, to achieve the integration of the source table, with communication interfaces.

Technical characteristics:

1. Output Capacity: 1KVA;

2. Output Voltage: 0V ~ 150V; 0V ~ 300V (1Φ),

3. Voltage stability: ≤0.2%;

4. Voltage, ammeter basic accuracy: ± (0.4% of reading + 0.1% of range +1 words)

5. Power Meter Basic accuracy: ± plusmn; lusmn; usmn; smn; mn; n;; 0.4% of reading + (0.1 / PF)% range +1 words)

6. Maximum output current: 110V: 9A; 220V: 4.5A;

7. Output frequency: 45-65 / 50/60 / (2F / 4F / 400Hz) (optional);

8. Frequency stability: ≤0.03%;

9. The total harmonic content: ≤2%;

10. Power efficiency: 80%;

11. The self-protection function: output short circuit; overcurrent; overload; internal power device overheat protection circuit will automatically cut off the output; sound and light alarms.
