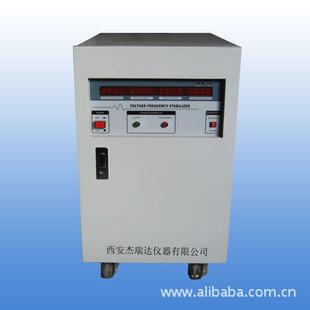

Sine wave power inverter

bargain

Input voltage: 1 (V)	Waveform distortion: 1 (%)	Frequency regulation of: 1 (%)
Output voltage: 1 (V)	Load regulation: 1 (%)	Circuit mode: SPWM switching
Load Type: Mixed loads	Custom processing:	Efficiency: 1 (%)
Applications: Computer equipment	Type: sine wave power inverter	Model: AF60-33006
Output frequency: 1 (Hz)	Brand: ACS	Product Certification: CCC
Control mode: Pulse width modulation type	Input Frequency: 1 (Hz)

Sine wave power inverter Introduction

Sine wave inverter power supply AC power supply, design synthesis of (SJ / T 10691), (GB 6587), (GB 7260) technical conditions to isolate the transformer output to increase machine stability, strong load adaptability, the output waveform quality, easy operation, small size, light weight and other characteristics, the power supply also has a short circuit, overcurrent, overvoltage, overheating protection function to ensure reliable operation of the power supply. The power supply of the meter high measurement accuracy, stability Well, to achieve the integration of the source table.

Website: www.acsoonpower.com

Sine wave power inverter Features

IGBT / PWM type inverter power supply features:

1. Input frequency: 50Hz, 60 Hz

2. Output voltage: 0 ~ 300VAC.

3. Output frequency: 40 - 499.9Hz programmable means pulling setting.

4. The voltage; frequency; current; power meter uses 4 digit LED display; simple; read; high resolution.

5. The voltage (V), frequency (Hz), current (A), power (W) 4 windows simultaneously measured; display; without switching.

6. No radiation interference, with a small harmonic components, and special treatment, do not interfere.

7. pure, stable sine wave output.

8. Large capacity; small size; light weight (17Kgs), high efficiency; silent device reliability.

9. provide world standard voltage, frequency, simulation tests of various electrical products.

10. Overload capability. Instantaneous current can withstand 3 times the rated current.

11. with over-current, over temperature, short circuit, instantaneous power protection and warning devices.

12. Suitable resistive; capacitive; inductive and other non-linear load.

Sine wave inverter power supply technology parameters

Phase			Three-phase
model			AF60-33006
capacity			6KVA
Production methods			IGBT / PWM pulse width modulation mode
enter		Voltage	3 phase 4 wire + G: 380V ± 10%
enter		frequency	47Hz-63Hz or 400Hz ± 5%
Output		Voltage (three phase)	110V system: 0-260V (Low Range)
		Voltage (three phase)	220V system: 0-520V (High Range)
		Load regulation rate	≤±1%
		frequency	40.0Hz-499.9Hz (can be programmed)
		Frequency stability	≤±0.01%
		Harmonic distortion	Sine wave, ≤2%
		Frequency table	4-digit, digital frequency meter, resolution 0.1Hz / Step
		Voltmeter	4-digit digital voltmeter resolution 0.1V
		Ammeter	4-digit, digital ammeter, resolution 0.1A
		Watt Table	4-digit, digital watt meter, Resolution 0.1W
protective device			With overload; over temperature; short circuit; instantaneous power protection; alarm device
working environment		temperature	0-40deg. ℃
working environment		humidity	0-90% (non-condensing)
Output current	Low	L: 16.8A
Output current	High-grade	H: 8.4A
weight	(Kgs)	100
size	(Mm)	640400910

Sine wave inverter power prices, please contact 029-86608491
