add to cartInput voltage: 1 (V) | Waveform distortion: 1 (%) | Frequency regulation of: 1 (%) |
Output voltage: 1 (V) | Load regulation: 1 (%) | Circuit mode: SPWM switching |
Load Type: Mixed loads | Custom processing: | Efficiency: 1 (%) |
Applications: IT industry | Type: Three-phase inverter power supply | Model: 3KVA |
Output frequency: 1 (Hz) | Brand: ACSOON | Control mode: Pulse width modulation type |
Input Frequency: 1 (Hz) |
(Introduction)

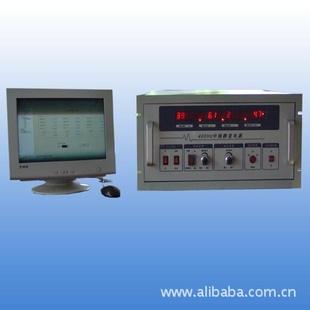

I produced the three-phase AC variable frequency power supply is used in today's international advanced IGBT inverter output technology, designed using advanced, high-performance microprocessor-controlled precision power supply, it has over-current, short circuit, overvoltage, undervoltage, overload protection and alarm fault display function to ensure the safety of electrical equipment and variable frequency power supply having strong load adaptability, good output waveform quality, good man-machine interface, simple operation, small size, light weight advantages. sine wave output, adjustable output voltage and frequency power inverter provides AC power to the electrical equipment required.
The products are widely used in home appliances manufacturing, electrical, electronics manufacturing, industry, computer equipment manufacturing, laboratory and testing units, aviation, military units, medical equipment, railway, oil drilling platforms require different power and special requirements place.
(main feature)
1. The use of separate (stand-alone), output isolation power transformer structure, three-phase single-phase desirable use
2. The high-precision frequency stabilization; rapid adjustment knob voltage; frequency; available with load directly regulate online
3. The three-phase active power; frequency; high precision; strong anti-interference ability
The fast transient response; 100% load / unload; regulator within 2ms response time
5. No radiation interference; containing a small harmonic components; and after special treatment; no interference
6. Unique instantaneous value control; small waveform distortion; high control accuracy
7. High efficiency up to 85%; wide loads; may be inductive; capacitive; resistive load
8. Provide world standard grid voltage; frequency; simulation tests of various electrical products
9. Output voltage: high-grade phase voltage 0 ~ 300V (line voltage of 0 to 520) continuously adjustable, low phase voltage 0 ~ 150V (line voltage 0 ~ 260V) continuously adjustable voltage can simulate the world
10. The independent electrical parameters of table show actual real-time measurement: Output frequency; output voltage; output current; output power and load power factor
11. Mitsubishi IGBT, Mitsubishi driver modules, ruby, Suzuki imported filter capacitor
(Performance standards)
(GB7260-87 uninterruptible power supply) (Q / 01AK001-2005 programmable frequency voltage power supply) (GJB181A-2003 aircraft power characteristics) (GJB572-88 aircraft ground power supply characteristics and general requirements)
(Technical Parameters)
model | AF60-13003 | AF60-33003 | ||
capacity | 3KVA | |||
Volume (L * W * H) | 560 * 350 * 600 (mm) | |||
grade | High-end industrial products | |||
working principle | IGBT / SPWM pulse width modulation | |||
AC input | Phase | Simplex | Three Phase | |
Voltage | 220V±10% | 380V±10% | ||
frequency | 50HZ ± 5% | |||
AC output (Standard sine wave) | Phase | Simplex | Phase four-wire | |
Voltage | Line voltage: 0-500V; phase voltage: 0-150V (low-grade) 0-300V (upscale) continuously adjustable, customers can request special custom | |||
Phase current | 8.3A (L) | |||
4.2A (H) | ||||
frequency | 50/60 / 45-65HZ (continuously adjustable) or 400HZ / 300-500HZ (continuously adjustable) (can be customized) | |||
Frequency stability | ≤0.01% | |||
Load stability | ≤±1% | |||
Voltage regulation rate | ≤±1% | |||
Waveform distortion | THD≤ ± 3% (resistive load) | |||
Unbalanced | Phase 120 ° ± 2 °; phase difference (3% Rating | |||
Power Factor | 0.85 | |||
effectiveness | ≥85% | |||
Reaction time | (20ms | |||
Adapt to the load | No type restrictions, inductive and capacitive loads need to amount to use. | |||
Panel Displays | Digital display: Output frequency; voltage; current; power / power factor | |||
protective device | Input no-fuse switch; Output no fuse switch; overvoltage; overcurrent; overload; over temperature and short circuit protection and automatic alarm | |||
noise | (50dB | |||
Insulation reactance | 500Vdc 20MΩ or more | |||
Voltage insulation | 1800Vac / 5mA / 1 分钟 | |||
Cooling device | Forced air cooling fan | |||
Chassis Architecture | Three film surface quality, fine orange lines | |||
Electromagnetic Compatibility | Referring GJB151A-97, GJB152A-97 requirements | |||
Use of the environment | Operating temperature | -10~50℃ | ||
Relative humidity | 0-90% (non-condensing) | |||
Altitude | 2000 meters | |||
Remark | a. Power according to the modular design, ease of maintenance replacement parts. b. Follow the on ship vibration test standards, strengthening anti-vibration, after the long-distance transport to ensure reliable performance. c. After the parameters debugging, still keep the original settings. d. Communication monitoring optional RS232 / 485 and other communications interfaces. e. according to the voltage, frequency and other parameters can be specially tailored to customer requirements. |
