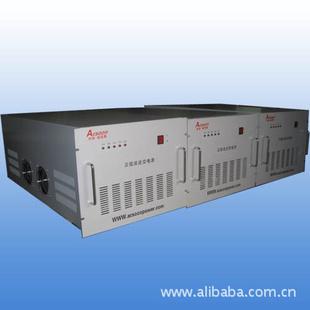

Communication sine wave inverter

bargain

Input voltage: 1 (V)	Waveform distortion: 1 (%)	Frequency regulation of: 1 (%)
Output voltage: 1 (V)	Load regulation: 1 (%)	Circuit mode: SPWM switching
Load type: inductive load	Custom processing:	Efficiency: 1 (%)
Applications: Computer equipment	Type: sine wave power inverter	Type: AND
Output frequency: 1 (Hz)	Brand: ACS	Product Certification: CCC
Control mode: Pulse width modulation type	Input Frequency: 1 (Hz)

AND series inverter communication device is a mains and battery power into uninterrupted, purifying AC power conversion device, giving computers and other electrical equipment can be used to provide continuous AC power, no electricity preparedness stability and power. can also prevent various distortion of utility power, such as the supply voltage drops, surge, spikes and broadcast frequency interference.

Features:
1) Wide input voltage range; high voltage accuracy; environmental adaptability;

2) Inverter unit with microprocessor control; SPWM sinusoidal pulse width modulation technique; waveform pure;

3) A unique dynamic current loop control technology to ensure reliable operation of the inverter;

4) overload capability, able to withstand computer load power surge;

5) High-power static bypass switch; by the bypass when the overload; switching time is short;

6) has input over; undervoltage; output over; undervoltage; over-temperature; short circuit protection;

7) Inverter front panel LCD or LED display;

8) a variety of lightning protection scheme option;
9) input and output electrically isolated inverter technology, EMC index is high;
10) using IGBT power devices; strong overload capacity; high overall efficiency;

Technical Specifications:

model

500VA

1KVA

2KVA

3KVA

4KVA

5KVA

6KVA

Operation mode

Pure inverter / back-up

DC input

Rated input voltage (VDC)

2448

Rated input current (A)

25/13

50/25

100/50

100

120

150

Input voltage range (VDC)

20-30 (24V), 40-60 (48V)

40-60 (48V)

AC input

Input voltage range (VAC)

220V (85%~110%)

Input frequency range (Hz)

50Hz ± 5%

Input Current (A)

2.5

4.5

9.0

13.6

22.7

Bypass conversion time (ms)

≤4

AC output

Power factor (PF)

0.7

Output voltage accuracy (V)

220V±2%

Waveform

Sine wave

Settling time (ms)

(50

Output frequency accuracy (Hz)

50Hz ± 0.1%

Waveform distortion (THD

≤3%

Transient changes

± 5% (0% ~ 100% load)

Crest factor (CF)

3∶1

Inverter efficiency (%)

85% (80% resistive load)

87% (80% resistive load)

protection

Features

Output overload protection

120%, maintained 30S

Output short circuit protection

Shutdown protection, artificial restoration

DC low voltage protection

Inverter shutdown, automatic recovery

Over-temperature protection system

85 ℃ shutdown protection, 75 ℃ automatically restored

DC input reverse protection

no work

working environment

noise

≤45dB

≤50dB

Dielectric strength

Input to output 2000VAC, 1 分钟

Working temperature

Temperature: -5 ~ 40 ℃

Relative humidity

20% to 90% non-condensing

Altitude (m)

≤1000 m

cooling method

Forced air
