add to cart| Input voltage: 0 (V) | Waveform distortion: 0 (%) | Frequency regulation: 0 (%) |
| Output voltage: 0 (V) | Load regulation: 0 (%) | Circuit mode: SPWM switching |
| Load Type: Mixed loads | Custom processing: | Efficiency: 0 (%) |
| Applications: appliance manufacturing | Type: AC Power Supply | Model: CWY |
| Output frequency: 0 (Hz) | Brand: ACSOON | Product Certification: CCC |
| Control mode: Pulse width modulation type | Input Frequency: 0 (Hz) |

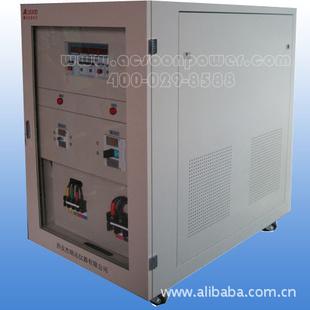

CWY parameter interference AC power supply Description:
CWY parameter interference AC power supply in recent years one of the fastest growing anti purifying power. It sets the isolation transformer, wide range of regulators, interference filters in one superior performance, is currently the highest reliability The voltage regulator fastest regulator largest and most wide-band interference, interference protection the most thorough purification AC power supply, can protect the microelectronic device in the worst grid can also be safe to work. parameter stability voltage power supply is our latest patented technology products, it uses a combination of advanced technology and modular structure, making the design and manufacture of AC parameters regulated power supply with a revolutionary leap. Great CWY parameter power supply input voltage range, The small device with strong comprehensive anti-interference ability, speed and voltage regulation, protection, modular structure of the patented technology. Because of these performance characteristics. CWY parameters regulated power is widely used in the computer system, program-controlled switches, microwave, wireless base stations, intelligent analytical instruments, radio and television systems, high-end medical equipment, laboratory, testing analysis and other types of high, refined, sharp microelectronic device system.
CWY parameter interference AC power supply main technical parameters:
model | Simplex | Three Phase |
Rated input voltage | 220V | 380V (three-phase five-wire system) |
Rated output voltage | 220V±2% | 380V ± 2% (three-phase five-wire system) |
Input voltage range | 120V-300V | 230V-480V |
Output voltage accuracy | Input 187V-250V Output 220V ± 2% (full load) |
Input 260V-480V, 380V ± 5% |
Input 160V-280V Output 220V ± 3%, -7% (full load) | ||
Input 160V-280V Output 220V ± 3%, -7% (half load) | ||
Voltage regulation time | ≤40ms | |
Power Factor | ) 0.95 | |
effectiveness | 85%~92% | |
Peak absorption | Enter superimposed 2KV / 1ms pulse output ≤30V | |
Harmonic distortion | ≤3.8% | |
noise | ≤53dB | ≤56dB |
Ambient temperature | ≤55℃ | |
Insulation Class | Grade B | |
Way of working | continuous | |
The above data for the reference data, subject to change without notice.
CWY AC power supply interference parameters Specifications Model (special products can be customized):
Specifications Model | Dimensions (mm) | Specifications Model | Dimensions (mm) |
Simplex | W * H * D | Three Phase | W * H * D |
CWY-0.5KVA | 290*590*300 | CWY-1.5KVA | 490*770*370 |
CWY-1KVA | 370*600*390 | CWY-3KVA | 490*770*370 |
CWY-2KVA | 370*600*390 | CWY-6KVA | 490*1050*360 |
CWY-3KVA | 425*720*535 | CWY-10KVA | 850*1350*600 |
CWY-5KVA | 425*720*535 | CWY-15KVA | 850*1350*600 |
CWY-10KVA | 485*1050*620 | CWY-20KVA | 1000*1870*730 |
CWY-15KVA | 950*150*750 | CWY-30KVA | 1000*1870*730 |
CWY-20KVA | 1000*1870*730 | CWY-50KVA | 1500*1870*730 |
CWY-30KVA | 1000*1870*730 | CWY-100KVA | 1300*2250*1000*2 |
CWY-50KVA | 1100*2000*950 | CWY-150KVA | 1300*2250*1000*3 |
CWY-70KVA | 1200*2150*950 | CWY-200KVA | 1300*2250*1100*3 |
