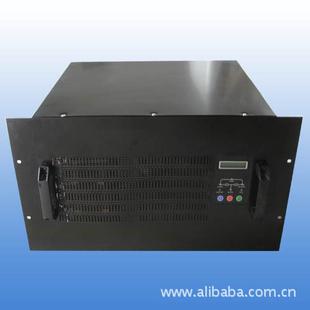

AND48 series of communications-specific sine wave inverter

bargain

Input voltage: 0 (V)	Waveform distortion: 0 (%)	Frequency regulation: 0 (%)
Output voltage: 0 (V)	Load regulation: 0 (%)	Circuit mode: SPWM switching
Load Type: Mixed loads	Custom processing:	Efficiency: 0 (%)
Applications: Computer equipment	Type: sine wave power inverter	Model: AND48
Output frequency: 0 (Hz)	Brand: ACSOON	Product Certification: CCC
Control mode: Pulse width modulation type	Input Frequency: 0 (Hz)

AND48 series of communications-specific sine wave inverter

Model: AND48 series (48V communication power inverter)
Category: Inverter
Manufacturer: 西安杰瑞达 Instrument Co., Ltd.

`Product Description

The power inverter is the latest application-specific requirements for power systems, telecommunications systems and railway systems and designed a new generation of intelligent power inverter. Capacity from 0.5K-12KVA, this series of products with superb craftsmanship , excellent performance, easy operation and easy maintenance make it a 19-inch rack ideal for power supply applications.

Features

1, intelligent control - internal CPU control circuit, high-performance SPWM inverter, LCD panel display parameters at a glance.

22, the use of security worries - the output used frequency isolation transformer completely isolated, suitable for capacitive, inductive loads and other equipment.

3, intelligent RS232 communication - with BONON power monitoring software allows users to monitor real-time operational status of the inverter power supply.

4, the DC-side anti-irrigation noise small - professional noise reduction measures, the DC side of the anti-irrigation noise low, in line with the industry standard.

5. Perfect protection - with a battery undervoltage, overvoltage, overload, short circuit and a series of protection against failures caused by human action.

6, high reliability - static electronic bypass switch inside the machine, in the event of a power failure, it can provide AC output.

Technical data

model				AND48 series
project				48V dedicated communication
DC input	capacity		0.5KVA-12KVA
	Rated voltage		48V
	Allowable variation range		40V-60V
	Relative harmonic content		(40mV
AC input voltage				165-275V
frequency				50Hz ± 10%
AC output	AC output voltage		220V±1%
	frequency		50Hz ± 1%
	Waveform		Sine wave
	Dynamic characteristic		Load current 25% -50% -75%; mutations output; voltage variation ≤12%; response ≤6%
	Relative harmonic content		Input voltage and load current is rated a time when ≤6%
	Limit		0.15∽0.5MHz, peak (79dB Mean (66dB; 0.5∽30MHz, quasi-peak (73Db mean (60dB
	Rated output efficiency		) 85%
	Overload		The load current is automatically jumps to bypass 20s 120% -150% rated value, automatic recovery
Protection performance				AC bypass power failure; DC input undervoltage; overload; failure; output short; passing temperature
LCD		LCD Display	Display AC input; output voltage; frequency; DC input voltage; percentage of output power
		LED Display	Display AC input; bypass output; the inverter output; overload; DC undervoltage; fault
Communication Interface				Intelligent RS232 communication interface
surroundings		temperature	0-40℃
		Relative humidity	20-90%, non-condensing
		Insulation resistance	Compliance with EN50081-1 / EN55022
		Dielectric strength	Compliance with EN50081-1 / EN55022
Bypass conversion time				0ms
noise				(55dB
