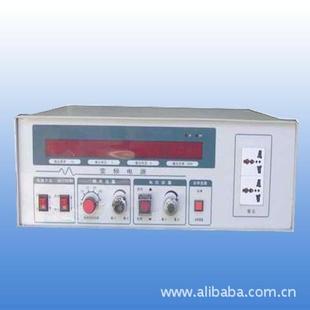

Three-phase inverter EPS Emergency Power Supply

Three-phase inverter EPS Emergency Power Supply

bargain

add to cart
Input voltage: 1 (V) Waveform distortion: 1 (%) Frequency regulation of: 1 (%)
Output voltage: 1 (V) Load regulation: 1 (%) Circuit mode: SPWM switching
Load Type: Rectifier load Custom processing: Efficiency: 1 (%)
Applications: Electronics Manufacturing Type: Three-phase inverter power supply Model: EPS
Output frequency: 1 (Hz) Brand: ACS Product Certification: CCC
Control mode: Pulse width modulation type Input Frequency: 1 (Hz)

EPS is the abbreviation of the English EmergencyPowerSupply, translated as emergency power, is an important part of modern building security installations. SJ-YJS / P Series three-phase EPS Emergency Power Supply is internationally popular frequency conversion technology, adopt CPU control, digital circuit, highly integrated electronic components, developed a high-tech environment-friendly products. The use of digital control drive IGBT module, inverter SPWM pulse width modulation technology, which not only can be 50HZ or 60HZ standard frequency static power usage, but also as 50- 400HZ frequency power use; and the frequency stepless adjustable The product provides power for the second or third electrical equipment (Features).

Automatically provide emergency power a power failure or voltage outside the specified range 380V / 50Hz sine wave phase AC or DC emergency power supply, ensure the normal operation of critical loads. 2, a high-performance SPWM high frequency inverter technology, power quality , adapt to the load. 3, a high reliability using advanced technology and redundant design is CPU controlled and careful manufacture of high quality components, stable performance, high reliability. 4, a perfect protection with excellent output overload, short circuit protection, reverse battery protection, over-discharge protection, such as improving protection, anti-misuse ability. 5, a user-friendly LCD display working status, mains voltage, output voltage, current, frequency, battery voltage, load factor, fault and other information, clarity; sound and light failure alarm indicates the type of fault, and with fault silencer function 6, the charging ability of a machine built with the use of controlled charging technology for large current charger, fast charging, float voltage stability 7. simple structure inside the machine features a modular design, simple structure, easy maintenance. 8, by the fire center fire linkage centralized monitoring and management. 9, intelligent battery management an intelligent battery monitoring and management components strengthen battery monitor, extended battery life and utilization.

Technical Parameters

Model Project

YJD series

YJS series

YJS / P Series

lose

Enter

Mains voltage

AC180-242V (can be set)

AC323-418V (can be set)

AC323-418V (can be set)

battery voltage

48V-220V

192V-528V

492V-528V

Mains frequency

AC50Hz ± 10%

Dual mutual investment

Optional

lose

Out

The output voltage

Normal state: consistent with the mains

Emergency: 220V ± 3% output voltage or DC

Emergency: 380V ± 3% or DC output voltage

Output frequency

Normal state: consistent with the mains

Emergency: 50Hz ± 0.1Hz

Emergency: 50Hz ± 0.5Hz

Output sub large ones

Consultations maximum expansion of 16, For more than 16 channels and manufacturers

Output channel characteristics

Persistent; non-persistent; fire linkage type

Efficiency (rated load)

≥90%

Output waveform

Standard sine wave

Sine wave PWM

Switching time

≤0.25 sec [(/ span) (span style = 'font-family: songti;') duiyuteshushebeikeyizuodaolingqiehuan (/ span) (span style = 'font-family: Arial;')]

Overload characteristics

120% of rated load 10 minutes; when 150% ≥1 minute

Status Display

Large-screen LCD display Chinese characters + LED operating status display

noise

Normal state: ≤30dB; state of emergency: ≤55dB (air-cooled)

model

Output power (kw)

Host size (mm) D * W * H

Battery Cabinet

Configuring battery (AH / V * block)

Weight (kg)

The number of

YJS / P-2.2KW

2.2

450*740*1500

Within the host cell

7/12*41

230 (with battery)

YJS / P-3.7KW

3.7

450*740*1500

Within the host cell

10/12*41

340 (with battery)

YJS / P-5.5KW

5.5

450*740*1800

Within the host cell

24/12*41

500 (with battery)

YJS / P-7.5KW

7.5

450*740*2200

Within the host cell

40/12*41

760 (with battery)

YJS / P-11KW

11

600*800*2200

Within the host cell

55/12*41

830 (with battery)

YJS / P-15KW

15

600*800*2200

1

65/12*41

1320 (with battery)

YJS / P-18.5KW

18.5

600*800*2200

1

80/12*41

1660 (with battery)

YJS / P-22KW

22

600*800*2200

1

90/12*41

1800 (with battery)

YJS / P-30KW

30

600*800*2200

2

100/12*41

2440 (with battery)

YJS / P-37KW

37

600*800*2200

2

65/12*82

2940 (with battery)

YJS / P-45KW

45

800*800*2200

2

90/12*82

3320 (with battery)

YJS / P-55KW

55

800*800*2200

3

100/12*82

4370 (with battery)

YJS / P-75KW

75

800*800*2200

3

100/12*123

5630 (with battery)

YJS / P-93KW

93

800*800*2200

4

90/12*164

7600 (with battery)

YJS / P-110KW

110

800*800*2200

4

100/12*164

8950 (with battery)

YJS / P-132KW

132

-

5

90/12*205

-

YJS / P-160KW

160

-

6

100/12*246

-

YJS / P-187KW

187

-

7

90/12*287

-

YJS / P-200KW

200

-

7

100/12*287
