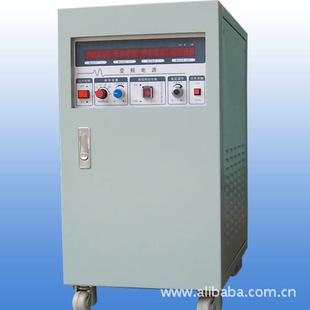

Because of historical reasons, the world grid index is not uniform, which for our export products worth, creating a barrier. I research and development company with production and export of military technology to accurately simulate grid conditions in different countries, and have frequency stabilization function AF60 series variable frequency power supply. The inverter power supply designed for the import and export of electrical products transformer, frequency test power supply design and manufacturing, to provide world standard grid voltage and frequency, output voltage, output frequency stepless digital adjustable States, stable pure sine wave output, eliminate network interference, particularly applicable to the export of electrical products voltage, frequency conversion test; laboratory, measuring rooms and other departments for a variety of sophisticated testing; as well as the import of equipment for power 60Hz frequency power.

(main feature)

1. Low distortion interference, enter 357 odd filter on the grid without interference, input / output fully isolated, secure and reliable

2.16 microprocessor controlled, intelligent, flexible and easy to operate

3. fast dynamic response, 0-100% load change, the steady-state response time (0.1S

4. No radiation interference, with a small harmonic components, and special treatment, no interference

5. Unique instantaneous value control, waveform distortion is small, high control accuracy

6. efficiency up to 85% for wide loads, for inductive, capacitive, resistive load

7. imported German Siemens IGBT high frequency inverter and movement, stable and reliable

8. Provide world standard grid voltage, frequency, simulation tests of various electrical products

9. Output voltage: low-grade: 0-150V, high-grade: 0-300V continuously adjustable

10. Output frequency: fixed-frequency 50/60/100 / 200Hz; FM 45-65Hz continuously adjustable

11. The independent electric actual real-time measurement parameters table show: Output frequency; output voltage; output current; output power and load power factor

(Performance standards)

(GB7260-87 uninterruptible power supply) (Q / 01AK001-2005 programmable frequency voltage power supply) (GJB181A-2003 aircraft power characteristics) (GJB572-88 aircraft ground power supply characteristics and general requirements)

(Technical Parameters)
