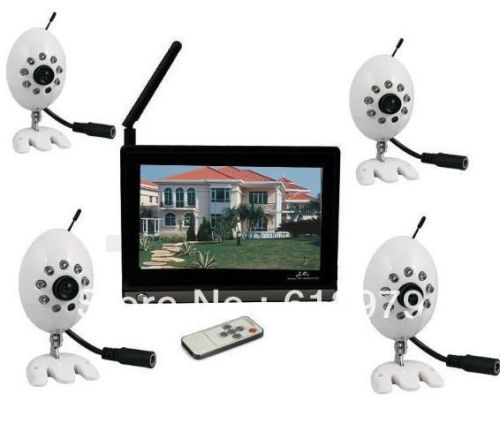

Transmit & Receiver Wireless Baby Monitor 2.4GHz 1\3inch Chip Security CCTV 7" Audio-visual

Transmit & Receiver Wireless Baby Monitor 2.4GHz 1\3inch Chip Security CCTV 7" Audio-visual

220 USD

add to cart

Item specifics

Brand Name:
Brand new
Model Number:
WI-BM2.4-B

Product Description

Camera Specification:
TV System:
PAL/ NTSC
Validity Pixel:
PAL: 628 (H) x 582 (V)
NTSC: 510 (H) x 492 (V)
Image Device:
Vimicro 0702 Vision CMOS
Horizontal Definition:
420 TV Lines
Angular Field of View:
45 (f=6mm)
Minimum Illumination:
0 Lux
Night Vision Range:
8m
Band Width:
20M
IR LEDs:
9 IR LEDs
Synchronization System:
Internal
Scanning Frequency (H) :
PAL: 15.625KHz
NTSC: 15.734KHz
Scanning Frequency (V) :
PAL: 50Hz
NTSC: 60Hz
Backlight Compensation:
Auto
Electronic Shutter:
1/50 (1/60) ~ 1/100000 Sec
White Balance:
Auto
S/ N Ratio:
) 48db
Gamma Correction:
) 0.45
Operation Temperature:
-10 ~ +50 / +14 ~ +122 C / F
Transmission Frequency:
ISM 2400 ~ 2483MHz
Power Supply:
DC +12V

Receiver Specification:
Aspect Ration:
7 inch (16: 9)
Display Element:
Color TFT LCD
Video System:
PAL/ NTSC
Active Area:
154.08 (mm) *86.58 (mm)
Resolution:
480 (H) *RGB*234 (V)
Receiver Channel:
4 Channels
Brightness:
200cd/
Contrast Ratio:
300: 1
Db Level:
-90dB
Composite Video (AV) :
One-way AV input
OSD Language:
English
Input Voltage:
DC 12V
Max Power Consumption:
≤8W


Item Includes:

1 x 7 inch TFT LCD 2.4GHz 4-Channels Wireless AV Color Monitor
4 x 2.4GHz, 1/3 Omn Vision Chip Wireless CMOS Color Camera
5 x Power Adapter
1 x UserManual
1 x Remote Control
1 x AV Cable

View More Product Pictures:

Packaging Details

Unit Type:
piece
Package Weight:
1.800kg (3.97lb.)
Package Size:
30cm x 25cm x 11cm (11.81in x 9.84in x 4.33in)
