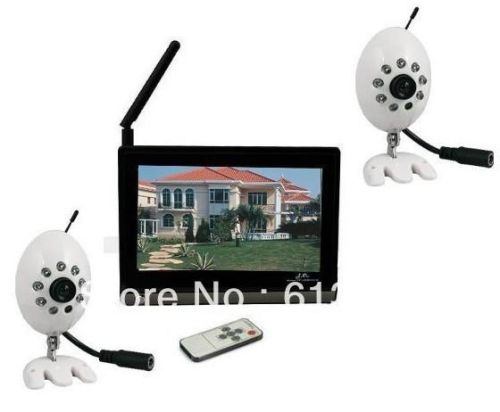

7 inch Wireless AV transmit & Receiver Baby Monitor 2.4GHz 4Channels Security CCTV with Remote Control

7 inch Wireless AV transmit & Receiver Baby Monitor 2.4GHz 4Channels Security CCTV with Remote Control

155 USD

add to cart

Item specifics

Brand Name:
Brand new
Model Number:
WI-BM2.4-B

Product Description

Camera Specifications:

TV System: PAL/ NTSC
Validity Pixel: PAL: 628 (H) x 582 (V)
NTSC: 510 (H) x 492 (V)
Image Device: Vimicro 0702 Vision CMOS
Horizontal Definition: 420 TV Lines
Angular Field of View: 45 (f=6mm)
Minimum Illumination: 0 Lux
Night Vision Range: 8m
Band Width: 20M
IR LEDs: 9 IR LEDs
Synchronization System: Internal
Scanning Frequency (H) : PAL: 15.625KHz
NTSC: 15.734KHz
Scanning Frequency (V) : PAL: 50Hz
NTSC: 60Hz
Backlight Compensation: Auto
Electronic Shutter: 1/50 (1/60) ~ 1/100000 Sec
White Balance: Auto
S/ N Ratio: ) 48db
Gamma Correction: ) 0.45
Operation Temperature: -10 ~ +50 / +14 ~ +122 C / F
Transmission Frequency: ISM 2400 ~ 2483MHz
Power Supply: DC +12V

Receiver Specification:

Aspect Ration:
7 inch (16: 9)
Display Element:
Color TFT LCD
Video System:
PAL/ NTSC
Active Area:
154.08 (mm) *86.58 (mm)
Resolution:
480 (H) *RGB*234 (V)
Receiver Channel:
4 Channels
Brightness:
200cd/
Contrast Ratio:
300: 1
Db Level:
-90dB
Composite Video (AV) :
One-way AV input
OSD Language:
English
Input Voltage:
DC 12V
Max Power Consumption:
≤8W
Features:

1.7 inch TFT LCD 2.4GHz 4-Channels Wireless AV Color Monitor.
2.4 Receiver Channel:
CH1: 2414MHz, CH1: 2432MHz, CH1: 2450MHz, CH1: 2468MHz.
3.PAL/ NTSC System.
4.Environmentally Friendly Design.
5.Remote Control with Full Functions.

Item Includes:
1 x 7 inch TFT LCD 2.4GHz 4-Channels Wireless AV Color Monitor
2 x 2.4GHz, 1/3 Omn Vision Chip Wireless CMOS Color Camera
3 x Power Adapter
1 x UserManual
1 x Remote Control
1 x AV Cable

View More Product Pictures:

Packaging Details

Unit Type:
piece
Package Weight:
1.600kg (3.53lb.)
Package Size:
30cm x 25cm x 11cm (11.81in x 9.84in x 4.33in)
