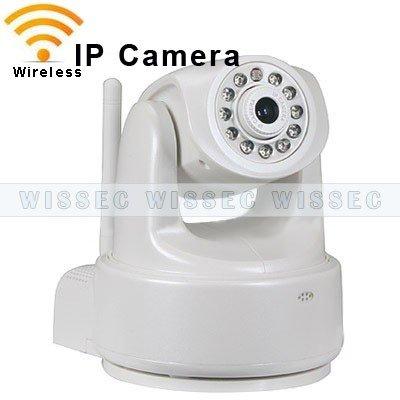

Security CCTV 3.6mm lens 11IR LED D\N Wireless Network IP Camera

Security CCTV 3.6mm lens 11IR LED D\N Wireless Network IP Camera

69.49 USD

add to cart

Item specifics

Place of Origin:
Guangdong China (Mainland)
Technology:
Infrared
Type:
IP Camera
Brand Name:
Security CCTV
Sensor:
CMOS
Model Number:
WI-WIP29W

Product Description

Specification:

Image SensorImage Sensor1/4 Color CMOS Sensor
Disaplay Resolution640 x 480 Pixels (300k Pixels)
Lensf: 3.6mm, F: 2.4 (IR Lens)
Mini. Illumination0.5Lux
LensLens TypeGlass Lens
Viewing Angle67 Degree
AudioInputBuilt-in Microphone
OutputBuilt-in Speaker
Audio CompressionADPCM
VideoImage CompressionMJPEG
Image Frame Rate30fps (VGA) ,30fps (QVGA)
Resolution640 x 480 (VGA) , 320 x 240 (QVGA)
Flip Mirror ImagesVertical / Horizontal
CommunicationEthernetOne 10/100Mbps RJ-45
Supported ProtocolHTTP, FTP, TCP/ IP, UDP, SMTP, DHCP, PPPoE, DDNS, UPnP, GPRS
Wireless StandardIEEE 802.11b/ g/ n
Data Rate802.11g: 54Mbps (Max.) , 802.11n: 150Mbps (Max.)
Wireless SecurityWEP & WPA WPA2 Encryption
PhysicalPan/ Tilt AngleHorizontal: 300° & Vertical: 120°
Infrared Light11 IR LEDs, Night visibility up to 8 metres
PowerPower SupplyDC 5V/ 2.0A (EU, US, AU adapter or other types optional)
Power Consumption5 Watts (Max.)
EnvironmentOperate Temper.0° ~ 55°C (14°F ~ 122°F)
Operating Humidity20% ~ 85% non-condensing
Storage Temper-10°C ~ 60° (14°F ~ 140°F)
Storage Humidity0% ~ 90% non-condensing
PC Requirements
CPU2.0GHZ or above (suggested 3.0GHz)
Memory Size256MB or above (suggested 1.0GHz)
Display Card64M or above
Supported OSMicrosoft Windows 2000/ XP/ Vista/ win7
BrowserIE 6.0, IE8.0, Firefox or other standard browsers

Features:

  • MJPEG video compression
  • Support wireless network (Wi-Fi/ 802.11/ b/ g/ n)
  • Built-in Microphone, Speaker allow you to communicate with people directly.
  • Support two-way audio function
  • High-sensitivity CMOS sensor
  • Resolution: 640 x 480 (VGA) , 320 x 240 (QVGA)
  • Video Frame Rate: 30fps (QVGA) , 30fps (VGA)
  • Minimum Illumination: 0.5Lux @ F2.0
  • IR night vision (Range: (8~10m)
  • Remote Pan/ Tilt rotate (Horizontal: 220°, Vertical: 90°)
  • Supports control P/ T through IP network
  • Supporting up to 10 users online simultaneously
  • Supporting image snapshot
  • Supports power up action
  • Built-in 10M/ 100M auto MDI/ MDIX Ethernet interface
  • Frame ratio or Bandwidth can be adjusted
  • Motion detection alert via email or upload image to FTP
  • Multi-level users management and passwords definition
  • Built-in Web server, supports remotely viewing and/ or management the camera form a standare Web browser on any computer, anywhere, and at anytime
  • Supporting Dynamic IP (DDNS) and UPnP LAN and Internet (ADSL, Cable Modern)
  • Giving alarm in cause of motion detection
  • Supporting multiple network protocols: HTTP/ TCP/ IP/ UDP/ STMP/ DDNS/ SNTP/ DHCP/ FTP
  • Built-in RTOS, supports software download and configuration online, that is convenient for camera updating and management
  • 14916253664100 multiple video display optional in one screen, support record, alarm, remote playback on records and other
  • management functions.
  • Power Supply: DC 5V/ 2A (EU, US, AU adapter or other types optional)
  • Power Consumption: 5 Watts (Max.)
  • Operate Temper: 0 degree~55 degree (14F~122F)
  • Operating Humidity: 20%~85% non-condensing
  • Storage Temper: -10 degree~60 degress (14F~140F)
  • Storage Humidity: 0%~90% non-condensing

Item includes:

  • 1 x Wireless IP Camera
  • 1 x Adaptor

Packaging Details

Unit Type:
piece
Package Weight:
0.850kg (1.87lb.)
Package Size:
15cm x 10cm x 15cm (5.91in x 3.94in x 5.91in)
