Specification:

• Image Sensor: 1/4 inch CCD
• System: PAL/ NTSC
• Horizontal Resolution: Color: 480TVL, B/ W: 600TVL
• Effective Pixels: 752 (Horizontal) x 582 (Vertical)
• Minimum Illumination: Color to B/ W, Color 0.05LUX, B/ W 0.001LUX
• S/ N Ratio: ) =60dB
• BLC: ON/ OFF
• White Balance: Auto
• Electronic Shutter: 1/50 to1/12000s
• Lens: Focus length 3.8 to 38mm
• Zoom: 10X Optical zoom
• Focus: manual/ Auto, take high-performance DSP to realize complete digital and ultra-high speed focus function
• Presets: 256
• Patrol Track 4groups, each can record 100 actions
• Cruise track 30 presets can join cruise, can setting the presets residence time.
• Other scan Support Horizontal scan, deuce area scan, scan random
• Rotation Range Horizontal 360 degree unlimited rotation, Vertical 180 degree, auto reversal
• Rotation speed Horizontal and Vertical Min 0.01 degree Max 300 degree / s.
• Protocol: PELCO-D and PELCO-P
• Power Supply: DC12V
• Dimension: 4 inch
• Operational Temperature: -20 degree C to +50 degree C
• Operational Humidity: (95%RH

Horizontal 360 degree, Vertical 180 degree all-direction monitor

10X Optical Zoom (High Speed Auto Focus)
Wider surveillance possible by using the 10X optical zoom with high speed auto focus

Support 256 Preset Points

Item Include:

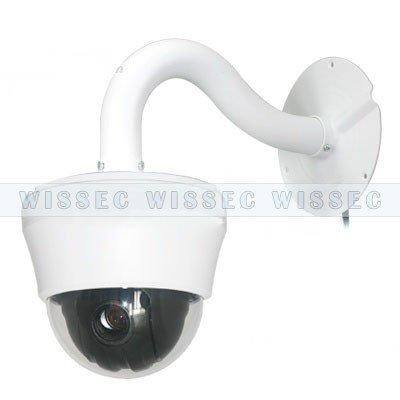

• 1 x 1/4 inch CCD MINI CCTV PTZ Surveillance Speed Dome Security Camera
• 1 x AC to DC 12V 2A Power Adapter
• 1 x Bracket
• 1 x Mounting Screws and Screw Caps Package
• 1 x User Manual
