Description:

H. 264 compression format, Supports 720P video resolution, 2 way audio, WIFI, 32G SD, mobile phone view, provides 485 port, alarm in and out interface, supports UPNP, motion detection, E-mail alarm , etc.

Specifications:

Image Capture:

• Sensor: CMOS Color sensor

• Minimum Illumination: 5Lux

• Lens: f=8mm, F=1.2

Video and Audio:

• Resolution: 720P, 1280 x 720

• Compression: H. 264

• Frame Rate: PAL: 25FPS, NTSC: 30FPS

• Bitrate: 128kbps to 2.048Mbps

• Dual Streaming: support

• Audio Function: Two-way Talk

• Audio Compression: G. 711

Network:

• Basic Protocol: TCP/ IP, UDP/ IP, HTTP, SMTP, FTP, DHCP, DDNS, UPNP, NTP

• Other Protocol: 802.11b/ g

Other Features:

• Mobile Phone View: M-JPEG and H. 264 dual streaming, M-JPEG Streaming sent to mobile phone

• Video control: support

• Dual way audio: support

• Storage: SD card for image and video storage, maximum storage 32G

• Motion Detection: yes ( 4 zone detection )

• Triggered Action: Email/ FTP/ SD memery/ external alarm/ send message to alarm server

• User Management: Three levels user and password

• Date/ Time Setting: support

• DDNS: A free DDNS provided by manufacturer






Hardware Interface:

• Ethernet: 10base-T/ 100base-TX

• Storage: Built-in SD Card Slot

• Alarm In: 1 way

• Alarm Out: 1 way

• RS485: 1way

• Audio In: Audio in interface x 1

• Audio Out: Audio Line-out interface x 1

Environmental:

• Power: DC 12V

• Power Consumption: (6w

• Operating Temp.: 0 to 45degree C

• Operating Humidity: 10% to 80% non-condensing

• OS Support: Microsoft Windows 90/2000/ XP/ Vista/ Win7

• Browser: IE6.0 and Above or Compatible Browser, Safari/ Firefox/ MAC.

• Applocation Software: IPCMonitor.exe






Software (For PC) :

• OS Supported: Microsoft Windows 98/2000/ XP/ Vista/ Mac OSX

• Browser Supported: Internet Explorer6.0 and Above or Compatible Browser

• Application Software: IPCMonitor.exe

Features:

• 32-bits RISC processor and special video encoder which can be up to Mega pixels encoding performance.

• Support 720P (1280x720) video resolution to realize HD video browsing.

• Support H. 264 Main Profile@Level3.0 .

• Support External audio in and out port.

• Built-in web server, support video view and parameter settings by browser.

• Support 802.11b/ g protocol, can build up wireless monitoring.

• Support UPNP function .

• Support max 32G SD card for video and picture storage.

• 4 area motion detection, and connect to external sensors.

• Alarming record by email, SD card, FTP server.

• Support mobile phone watching.

• Three level of user authority.

• Support upgrading online.

• Manufacturer Device ID, DDNS .

• Manufacturer provides free Central Management software which support Multi-view, record and play , etc.

• Support several browsers, IE, Firefox, Safari and Opera etc , and can view video by MAC .

Item Includes:

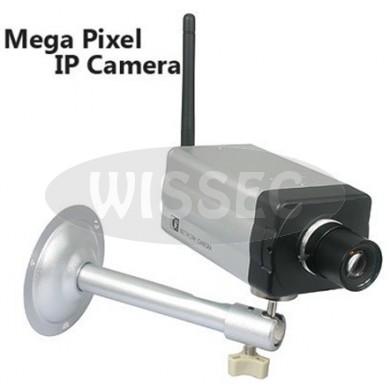

• 1 x Wireless Mega Pixels Camera
